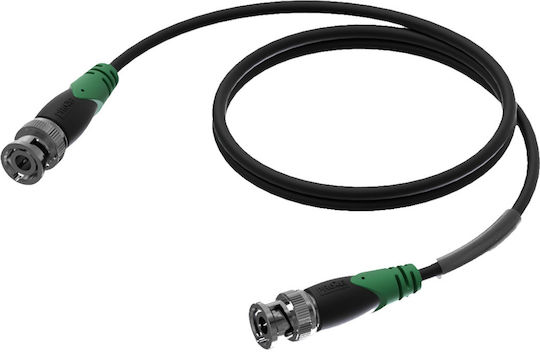

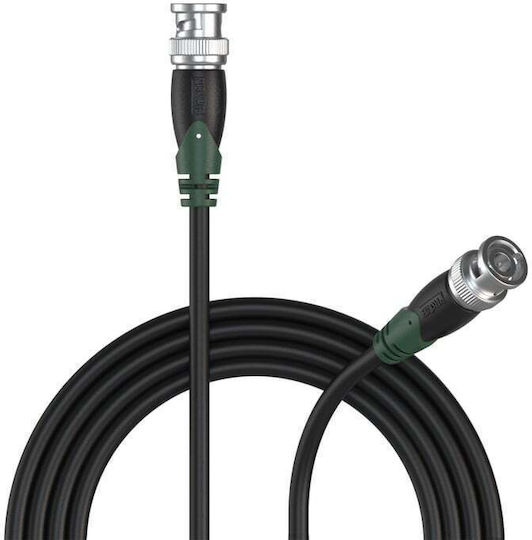

Coaxial Cable (BNC Male to BNC Male), 50 Ohm resistance, 10 meters long, and 5.0 mm (Ø) outer diameter. Suitable for IT and AV radio transmitter applications, as well as for antenna connection with RF transmitter/receiver.

• Cable type: 50 Ω coupling cable
• Application: AV & IT
• Inner conductor insulation material: PE 1.52 mm (Ø)
• Inner conductor insulation color: White
• Inner conductor braid shielding: BC 16 x 5 x 0.1 mm (Ø) (OFC)
• Outer sheath material: PVC 5 mm (Ø)
• Inner conductor material: BC 7 x 0.16 mm (Ø) (OFC)
• Inner conductor section: 0.125 mm²
• American Wire Gauge of inner conductor: 26 AWG
• Number of inner conductor wires: 1
• Temperature Range Fixed Installation: -40 °C to +80 °C
• Temperature Range Mobile Installation: -25 °C to +70 °C
• Bending Radius Fixed installation: 8 x outer diameter
• Bending Radius Mobile Installation: 10 x outer diameter
• Lead Resistance Shielding: 3.5 Ω / 100 m - 13.175 Ω / 100 m
• Rated Voltage: 30 V
• Nom. Velocity of Propagation: 64 %
