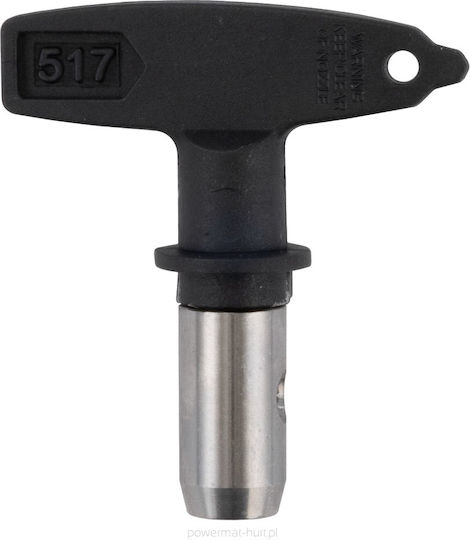

High Pressure Nozzle for Paint Spraying, Model 517
Designed for paints:
- Mineral Epoxy
- Acrylic Exchange
- Impregnated
Compatible with the POWERMAT PM-PDM-1500M painting unit
Spray width approximately 25 cm
Technical Specifications
- Working pressure: 225 bar
- Opening dimensions for various types of sprayed materials:
- Paints: 0.009″
- Stains, varnishes, oils: 0.009″ – 0.011″
- First coat: 0.013″
- Minerals, epoxies: 0.013″ – 0.015″
- Exchangers, emulsions: 0.015″
- Acrylics: 0.015″ – 0.019″
- Latex: 0.017″ – 0.019″
- Exterior, facade paints: 0.021″ – 0.029″
- Waterproofing: 0.023″ – 0.031″
- Multicolored construction paints: 0.023″ – 0.031″
- Fire protection: 0.029″ – 0.035″
- Rubbers: 0.025″ – 0.033″
- Filling, plaster: 0.027″ – 0.035″
- Tar masses: 0.055″ – 0.065″
Suitable for many well-known brands of painting tools.
- Type
- Nozzle
