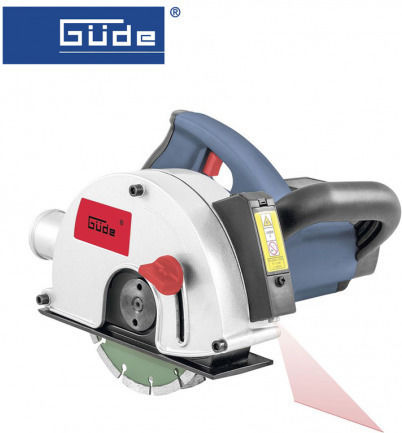

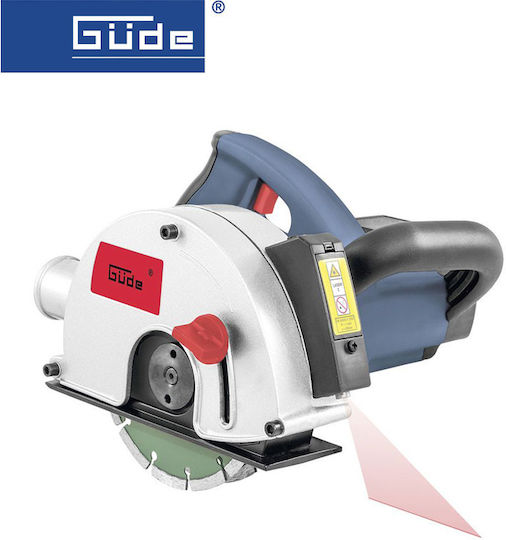

Circular Saw - Groove and expansion cutter MD 1700, 1700 W, GUDE 58090
- Handle guide for easy operation with minimal effort.
- Durable metal protective chimney.
- Stepless start-up function.
- Laser for precise cutting.
- Adjustable cutting backs.
- Infinite depth of cut adjustment.
- Connection to external dust extraction system for dust-free operation.
The groove cutting machine cuts grooves for cables and pipes (wall grooves) in all types of masonry with two parallel diamond cutting discs (excluding steel, concrete, and cement).
Technical specifications:
- Rated Power: 1700 W
- Rotations: 4000 rpm
- Cutting disc: ø 150 mm
- Hole: ø 22 mm
- Milling depth: 40 mm
- Milling width: 2.5/6/14/19/29 mm
- Dimensions L x W x H: 275 x 285 x 15 mm
- Weight: 7 kg
Main Specifications
- Power Source
- Electric
- Rail
- No
- Guide
- Yes
- Carrying Case
- Case
- Net Weight
- 7 kg
Battery Specifications
- Lithium
- No
Current Specifications
- Power
- 1700 W
- Cable Length
- -
Features & Functions
- Maximum Motor Speed
- 4000 rpm
- Speed Adjustment
- No
- Dust Suction System
- No
- Saw Blade Hole Diameter
- 22 mm
- Saw Blade Diameter
- 150 mm
- Max. Wood Cutting Capacity (90°)
- 22 mm
- Max. Wood Cutting Capacity (45°)
- 22 mm
- Plunge Saw
- No
- Brushless
- No
