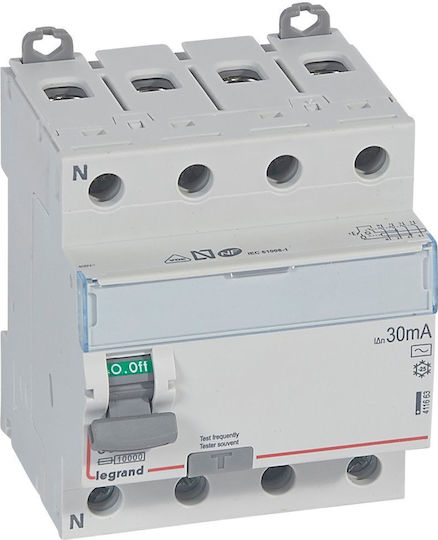

LEGRAND 4P 80A 30mA Earth Leakage Relay Three-Phase (Residual Current Device) RCCB DX³ 411663
- Number of poles: 4
- Rated voltage (Ue): 400V
- Rating/nominating current (In): 80A
- Sensitivity/nominating residual current (IΔn): 0.03 A
- Rated insulation voltage (Ui): 500V
- Rated impulse withstand voltage (Uimp): 4kV
- Installation method: DIN rail
- Type of residual current: AC
- Short-circuit resistance (Icw): 10 kA
- Surge current resistance: 0.25 kA
- Type of voltage: AC
- Frequency: 50Hz
- Protection class (IP): IP20
- Width in number of modules: 4
- Installation depth: 44 millimeters
- Operating ambient temperature: -25 to 60°C
- Pollution degree: 2
- Flexible cable connection cross-section: 0.75-35 mm²
- Rigid cable connection cross-section: 0.75-50 mm²
- RAL number (equivalent): 7035
- Width: 71.2 mm
- Height: 83 millimeters
- Depth: 77.8 mm
- Impact resistance (IK): IK04
- Storage temperature: -40 to 70°C
- Rated voltage (Un): 320-440V
- Power supply direction: From top or bottom
- Terminal identification indication: Yes
- Color: Grey
- Connection type: Screw terminal, comb and cable
- Type
- Earth Leakage
- Number of Poles
- 4
- Voltage
- 400 V
- Leakage Current
- 30 mA
- Type of Residual Current Relay
- -
