Converter 36v 48v 15v-60v 12v 5a Step Down
Microelectronic Converter Modules

Converter 36v 48v 15v-60v 12v 5a Step Down

Converter 36V 48V (15V-60V) to 12V 5A Step Down

  • Converter type: DC/DC
  • Voltage change: Step down (voltage reduction)
  • Typical input voltages: 24V / 36V / 48V
  • Minimum input voltage: 15V
  • Maximum input...

Converter 36V 48V (15V-60V) to 12V 5A Step Down

  • Converter type: DC/DC
  • Voltage change: Step down (voltage reduction)
  • Typical input voltages: 24V / 36V / 48V
  • Minimum input voltage: 15V
  • Maximum input voltage: 60V
  • Maximum output voltage: 12V
  • Output voltage ripple: 120mV p-p
  • Output voltage accuracy: 1.5%
  • Maximum output current: 5A
  • Recommended minimum current...
See full description See full description
21 99 €
22 Coins 22 Coins
Delivery Thu, 20 Aug - Mon, 24 Aug
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
Sent from Poland
From Rosfix
Poland
20+ pieces
See Microelectronics on the page of Rosfix
What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Converter 36V 48V (15V-60V) to 12V 5A Step Down

  • Converter type: DC/DC
  • Voltage change: Step down (voltage reduction)
  • Typical input voltages: 24V / 36V / 48V
  • Minimum input voltage: 15V
  • Maximum input voltage: 60V
  • Maximum output voltage: 12V
  • Output voltage ripple: 120mV p-p
  • Output voltage accuracy: 1.5%
  • Maximum output current: 5A
  • Recommended minimum current consumption: 0.5A
  • Maximum charging power: 60W
  • Recommended minimum charging power: 6W
  • Maximum energy efficiency: 95%
  • Maximum quiescent current: 0.1A
  • Operating temperature: from -20°C to 60°C
  • Operating frequency: 50kHz

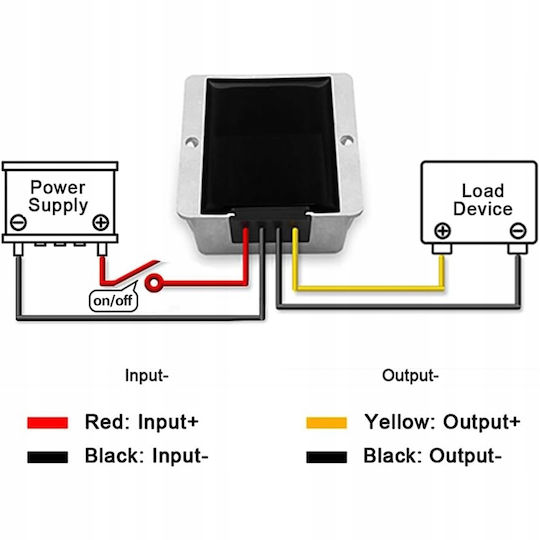

  • Connection: 4 built-in cables, 17.5cm length
  • Dimensions: 68mm x 60mm x 24mm
  • Mounting hole distance: 54mm
  • Mounting hole diameter: 6.3mm
  • Waterproof rating: IP68
  • Cover construction: Aluminum mold with ribs
  • Sealing: Coating resin
  • Cooling: The case acts as a heat sink

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Step-Down
Power Module
DC/DC
Minimum Input Voltage
36 V
Maximum Input Voltage
36 V
Minimum Output Voltage
36 V
Maximum Output Voltage
36 V
Maximum Output Current
5 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Converter 36V 48V (15V-60V) to 12V 5A Step Down

  • Converter type: DC/DC
  • Voltage change: Step down (voltage reduction)
  • Typical input voltages: 24V / 36V / 48V
  • Minimum input voltage: 15V
  • Maximum input voltage: 60V
  • Maximum output voltage: 12V
  • Output voltage ripple: 120mV p-p
  • Output voltage accuracy: 1.5%
  • Maximum output current: 5A
  • Recommended minimum current consumption: 0.5A
  • Maximum charging power: 60W
  • Recommended minimum charging power: 6W
  • Maximum energy efficiency: 95%
  • Maximum quiescent current: 0.1A
  • Operating temperature: from -20°C to 60°C
  • Operating frequency: 50kHz
  • Connection: 4 built-in cables, 17.5cm length
  • Dimensions: 68mm x 60mm x 24mm
  • Mounting hole distance: 54mm
  • Mounting hole diameter: 6.3mm
  • Waterproof rating: IP68
  • Cover construction: Aluminum mold with ribs
  • Sealing: Coating resin
  • Cooling: The case acts as a heat sink
