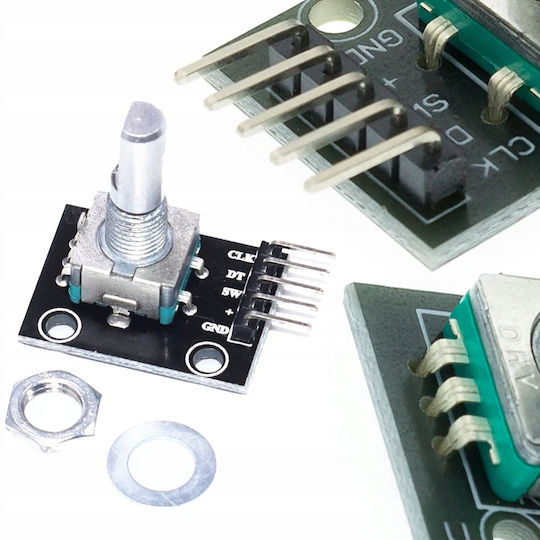

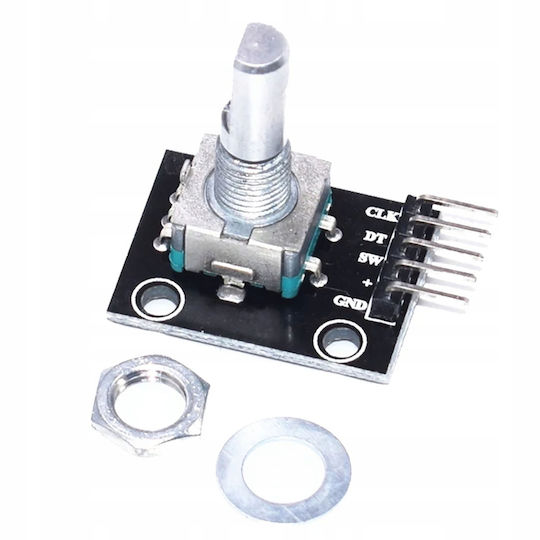

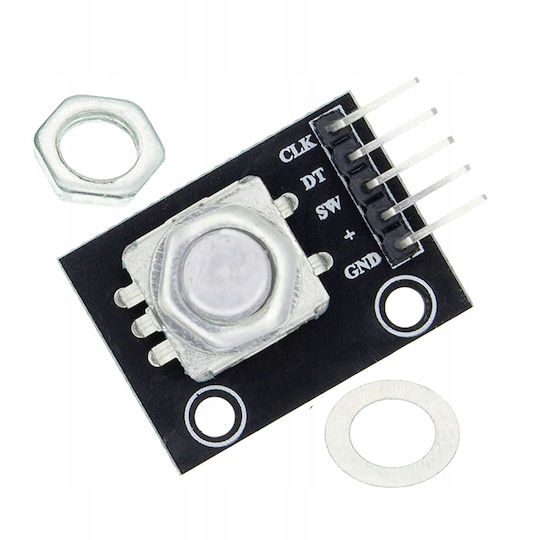

The Rotary Encoder Module with Button is a versatile component designed for precise control and position reading in various applications. It is suitable for user interfaces, DIY projects, robotics, and automation systems, offering reliable performance in a compact form.

• Full Rotation: 360° unrestricted (no threading)
• Built-in Button: Allows additional functions through pressing the encoder
• Accurate Pulse Counting: 20 pulses per rotation for precise position readings
• Standard Pin Layout: 2.54 mm, facilitating integration with prototype boards and other components
• Control Direction: Supports clockwise, counterclockwise, and button press actions

Technical Specifications:

• Rotation Range: 360°
• Pulses per Rotation: 20
• Connector Type: Goldpin, 2.54 mm arrangement
• Dimensions: 26 mm x 19 mm
• Operation: Right, left, and press (switch)

Package Contents:

• 1× encoder module with button
• 1× extra screws for potentiometer
