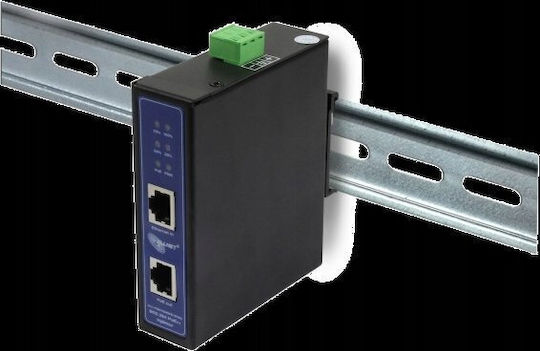

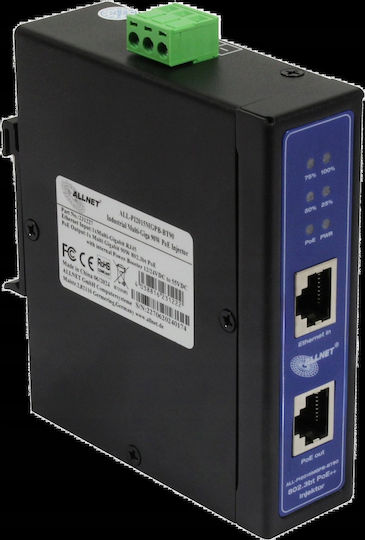

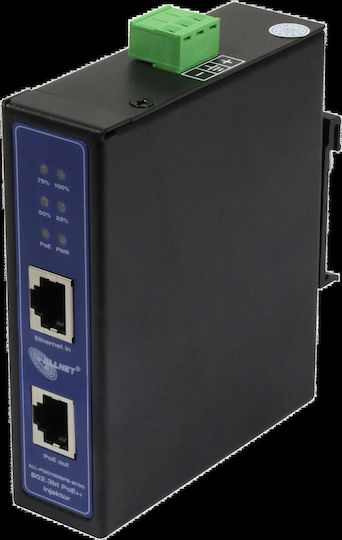

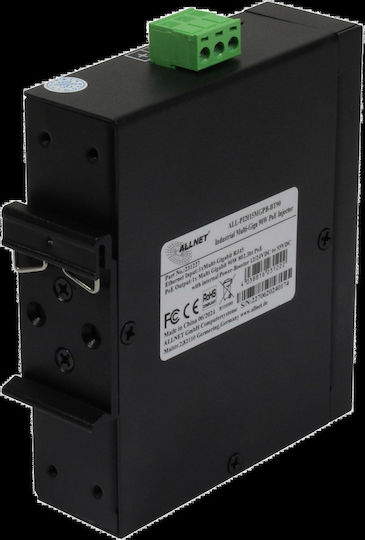

The ALLNET PoE Injector Industrial MultiGigabit model ALL-PI2015MGPB-BT90 is designed for high performance and reliability in modern network infrastructures. It supports the latest IEEE 802.3bt PoE++ standard, allowing transmission of up to 90 watts of power through Ethernet cables. It is ideal for:

• IP cameras
• Wi-Fi access points
• Smart LED lighting systems

Main technical specifications include:

• Ethernet Standards: Compatible with a range of standards, including IEEE 802.3 10Base-T to IEEE 802.3an 10GBase-T.
• Power Output: Maximum output of 90 watts, also compatible with lower outputs of 15.4 and 30 watts.
• Power Input: Accepts DC input voltage from 12 to 57 volts.
• Network Cable Compatibility: Supports cables up to 100 meters, compatible with Cat. 3 to Cat. 7.
• Environmental Specifications: Operating temperature from -40°C to +80°C, humidity from 10% to 90%.
• Safety Features: Surge protection at 6KV, including overvoltage, undervoltage, and short circuit protection, for safe operation.
