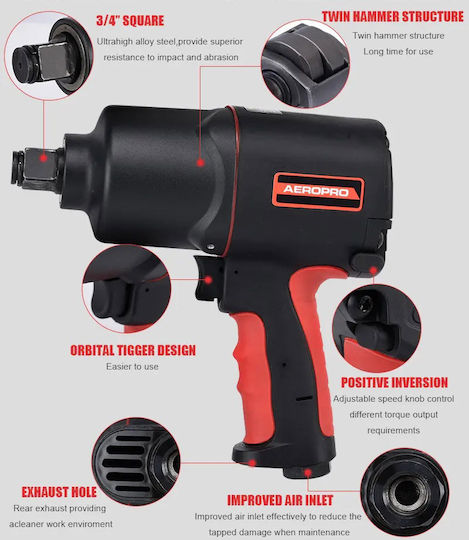

Impact parts, transmission shaft, rotor, processed by Ipsen thermal treatment equipment, ensuring long service life.
Body made of synthetic materials, lightweight, resistant to deformation, good airtightness.
POM blade and industrial P6 bearings that extend the service life.
High-quality protective clamp that extends the life of the hammer.
Passed a drop test from a height of 1 meter.
3-5 seconds to achieve maximum torque.
7.25 million life cycles for screws.
Technical data:
- Square drive: 3/4"
- Screw size capacity: 1" (25 mm)
- No load speed: 6500 rpm
- Working torque: 1355N.m (1000Ft-Lb)
- Total length: 208 mm
- Air inlet diameter (NPT): 3/8"
- Average air consumption: 9.5cfm (269l/min)
- Recommended air compressor: 3HP
- Air hose diameter (ID): 12mm (1/2")
- Weight: 6.6Lbs (3.0Kgs)
- Square Drive
- 3/4 "
- Torque
- 138.17 kgm
