The Mipro ACT343 receiver operates in the 620–644 MHz frequency band and uses CPU-controlled diversity reception. Its dual PiloTone & NoiseLock squelch circuit and RF interference warning indicator help with SQ adjustment. ACT SYNC synchronizes the receiver with the transmitter, while the output level can be preset to match the capsule sensitivity.
The Quad Channel metal chassis is 19″ wide and 1U high. The green backlit LCD automatically adjusts its brightness during operation and in standby mode. The receiver supplies power to MiPRO active antennas and features ergonomic switches.
- Type: Receiver
- Frequency band: 620–644 MHz
- Bandwidth: 24 MHz
- Reception mode: CPU-controlled diversity
- Sensitivity: 10 dBμV at S/N > 80 dB
- Signal-to-noise ratio: > 106 dB(A)
- Frequency response: 50 Hz–18 kHz
- Squelch circuit: Dual PiloTone & NoiseLock
- Synchronization: ACT SYNC between receiver and transmitter
- Indicator: RF interference warning

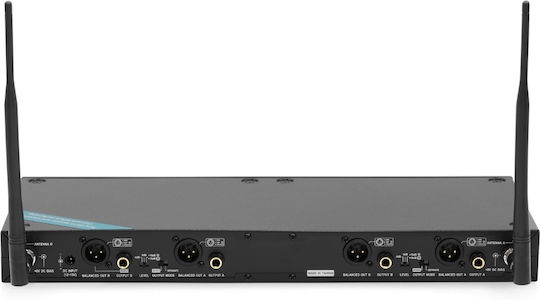

- Audio outputs: Balanced XLR and unbalanced Ø 6.3 mm
- Maximum output level: Balanced +16 dBV / 0 dBV, unbalanced +10 dBV / 0 dBV
- Power supply: 12–15 V DC, 1 A
- Active antenna power: Supplied by the receiver
- Chassis: Metal, Quad Channel, 19″, 1U
- Display: Green backlit LCD with automatic brightness adjustment
- Dimensions: 420 × 44 × 180 mm
- Weight: 1.75 kg
- Product Number
- DK-MIP00011
- Type
- Receiver
