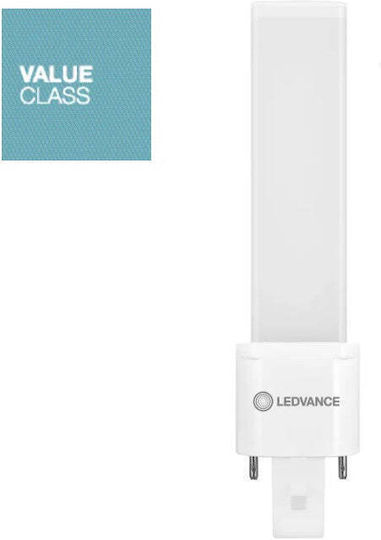

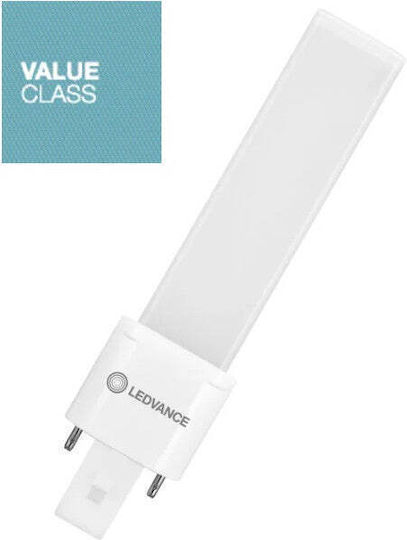

The Ledvance LED lamp with a G23 base operates directly on a 230 V AC mains supply, without an external driver. It consumes 3.5 W and produces a luminous flux of 400 lm, with a color temperature of 4000 K and a beam angle of 120°. The matte glass diffuses the light.
It replaces a conventional 7 W lamp and is suitable for a DC supply of 186–260 V. It operates at ambient temperatures from -20 to +45 °C.
- Power: 3.5 W
- Voltage: 230 V AC
- Base: G23, two-pin
- Luminous flux: 400 lm
- Luminous efficacy: 114 lm/W
- Color temperature: 4000 K
- Light color: Natural white
- Beam angle: 120°
- Color rendering index: Ra 80
- Lifespan: 30,000 h
- Switching cycles: 200,000
- Consumption per 1,000 hours: 4 kWh
- Power factor: 0.9
- Lumen maintenance factor: 0.93
- Operating temperature: -20 to +45 °C
- DC supply: 186–260 V
- Ingress protection rating: IP20
- Energy class: E
- Glass material: Matte
- Mercury: Mercury-free
- Length: 135 mm
- Diameter: 32.3 mm
- Quantity: 1
Main Specifications
- Power
- 3.5 W
- Application
- G23
- Voltage
- 230 V
- Beam Angle
- 120 °
- Colour Temperature
- Natural White
- Colour Temperature
- 4000 K
- IP Rating
- IP20
- Size
- 135mm
- Pieces
- 1 pcs
- Opal (Milky)
- Yes
Features & Functions
- Filament
- No
- Dimmable
- No
- Photocell
- No
- Motion Sensor
- No
