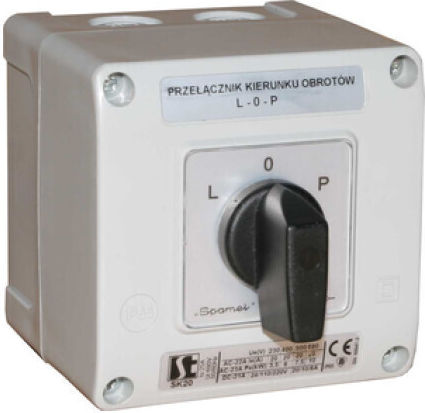

Spamel On-Off switch 1pcs
On-Off switches

Spamel On-Off switch 1pcs Code: SK20-2.8211OB11

On-Off Switch - Technical Characteristics

  • Ue: 690 V
  • Uimp: 6 kV
  • Iu=Ith: 25 A
  • Ie AC-21A, AC-22A: 20 A (230/400/500/690 V)
  • Pe AC-23A: 3.5 kW (230 V), 6 kW (400 V), 7.5 kW (500 V), 10 kW (690 V)
  • Pe AC-3:...

On-Off Switch - Technical Characteristics

  • Ue: 690 V
  • Uimp: 6 kV
  • Iu=Ith: 25 A
  • Ie AC-21A, AC-22A: 20 A (230/400/500/690 V)
  • Pe AC-23A: 3.5 kW (230 V), 6 kW (400 V), 7.5 kW (500 V), 10 kW (690 V)
  • Pe AC-3: 2.5 kW (230 V), 4 kW (400 V), 5 kW (500 V), 7.5 kW (690 V)
  • Ie DC-21A: 20 A (24 V), 10 A (110 V), 8 A (220 V)
  • Icw(1s): 0.25 kA
  • Icm: 0.34 kA
  • Short-circuit...
See full description See full description
44 40 €
45 Coins 45 Coins
Delivery Wed, 16 Sep - Fri, 18 Sep
2,50 € to a Skroutz Point
Do you want it with Free shipping?
Sent from Poland
From Ovolt 4.7 (12)
4.7 (12 reviews)
Poland
9 pieces
See Microelectronic Components on the page of Ovolt
What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

On-Off Switch - Technical Characteristics

  • Ue: 690 V
  • Uimp: 6 kV
  • Iu=Ith: 25 A
  • Ie AC-21A, AC-22A: 20 A (230/400/500/690 V)
  • Pe AC-23A: 3.5 kW (230 V), 6 kW (400 V), 7.5 kW (500 V), 10 kW (690 V)
  • Pe AC-3: 2.5 kW (230 V), 4 kW (400 V), 5 kW (500 V), 7.5 kW (690 V)
  • Ie DC-21A: 20 A (24 V), 10 A (110 V), 8 A (220 V)
  • Icw(1s): 0.25 kA
  • Icm: 0.34 kA
  • Short-circuit current: 10 kA
  • gG Fuse: 20 A
  • Conductor cross-section: 1...4 mm²
  • Torque: 0.5 Nm
  • Mounting: 31/□36
  • Mechanical endurance: 3.0 million (switching cycles)
  • Temperature: -40 ... +70°C (operating), -40 ... +70°C (storage)
  • Protection according to PN-EN 60529 and enclosure OB: IP65
  • Vibrations IEC 60068-2-6: 2...13, 2...100 Hz, ± 1 mm, ± 0.7 g
  • Shocks IEC 60068-2-27: 15 g, 11 ms
  • Moisture IEC 60068-2-30: 55°C, 95% relative humidity
  • Salt spray IEC 60068-2-52: Severity test 1

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
SK20-2.8211OB11
Colour
-
Features
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

On-Off Switch - Technical Characteristics

  • Ue: 690 V
  • Uimp: 6 kV
  • Iu=Ith: 25 A
  • Ie AC-21A, AC-22A: 20 A (230/400/500/690 V)
  • Pe AC-23A: 3.5 kW (230 V), 6 kW (400 V), 7.5 kW (500 V), 10 kW (690 V)
  • Pe AC-3: 2.5 kW (230 V), 4 kW (400 V), 5 kW (500 V), 7.5 kW (690 V)
  • Ie DC-21A: 20 A (24 V), 10 A (110 V), 8 A (220 V)
  • Icw(1s): 0.25 kA
  • Icm: 0.34 kA
  • Short-circuit current: 10 kA
  • gG Fuse: 20 A
  • Conductor cross-section: 1...4 mm²
  • Torque: 0.5 Nm
  • Mounting: 31/□36
  • Mechanical endurance: 3.0 million (switching cycles)
  • Temperature: -40 ... +70°C (operating), -40 ... +70°C (storage)
  • Protection according to PN-EN 60529 and enclosure OB: IP65
  • Vibrations IEC 60068-2-6: 2...13, 2...100 Hz, ± 1 mm, ± 0.7 g
  • Shocks IEC 60068-2-27: 15 g, 11 ms
  • Moisture IEC 60068-2-30: 55°C, 95% relative humidity
  • Salt spray IEC 60068-2-52: Severity test 1

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
SK20-2.8211OB11
Colour
-
Features
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
