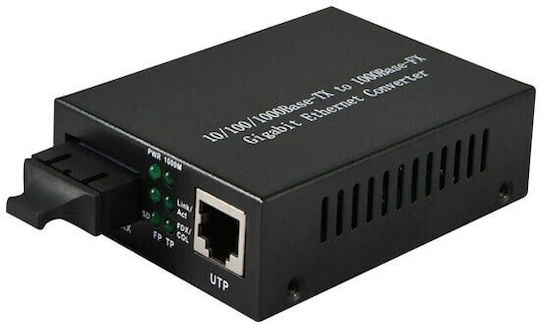

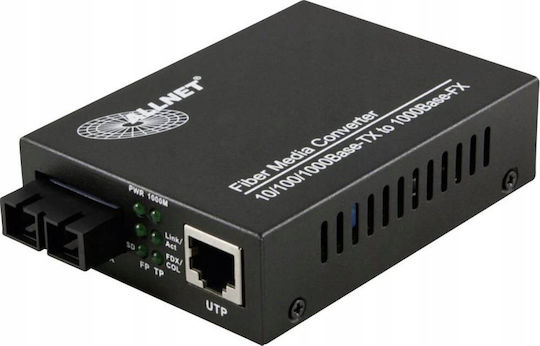

The ALLNET ALL-MC105G-SC-SM is a versatile media converter that effectively connects Ethernet networks using both copper and optical fibers. This particular product is designed for fast data transmission, making it ideal for long-distance connectivity requirements.
Main Features:
- Ethernet Ports: One 10/100/1000BaseT Ethernet TP port and one 1000BaseLX Ethernet Fiber port.
- Half/Full-Duplex Modes: Auto-MDI/MDI-X and Auto-Negotiation capabilities facilitate seamless integration.
- Long-Distance Support: The fiber optic port supports transmission up to 10 kilometers using SC connectors.
Compliance with Standards: The device complies with various IEEE standards, including:
- IEEE 802.3 10BaseT
- IEEE 802.3u 100BaseTX
- IEEE 802.3ab 1000BaseT
- IEEE 802.3z 1000BaseLX
- IEEE 802.3x Flow Control for reliable data transmission.
Data Transfer Rates: Supports up to 1 Gbps on copper and fiber optic ports.
Power Supply and Indicators: The converter requires an external DC 5V/2A power supply and features LED indicators for Power, Link, and TX/RX status.
In conclusion, the ALL-MC105G-SC-SM ensures reliable and fast connectivity, suitable for a range of industrial and commercial applications.
- Type
- Media Converter
- Pieces
- 1 pcs
