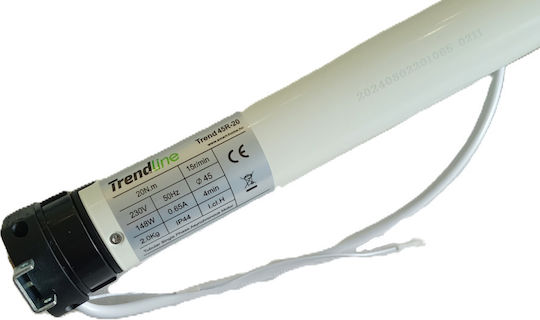

Roller mechanism AX 60 20Nm TrendLine with built-in radio receiver
The AX 60 20Nm motor features a built-in radio receiver and has a body diameter of 45mm. The head mechanism allows for quick and easy installation, suitable for industrial production as well. It is a conservative tubular motor with a long lifespan, equipped with thermal overload protection. The mechanical limit adjustment and silent operation make this series very successful.
Features:
- Easy adjustment of the switches for raising and lowering via the mechanism at the head of the motor.
- Long-term retention of end positions during power outages.
- Simple and quick installation.
- Conservative, with a long lifespan and thermal overload protection.
- Silent operation.
Specifications:
- The motor is certified according to TV.
- Dimensions, length without bearings: 605 mm.
- Motor diameter: 45 mm.
- Revolutions per minute: 15rpm.
- Power: 148 W.
- Nominal torque: 20 Nm.
- Maximum load: 45 kg.
- Cable length: 1.5 m.
- Axis diameter: 60 mm octagonal.
- Torque
- 20 Nm
