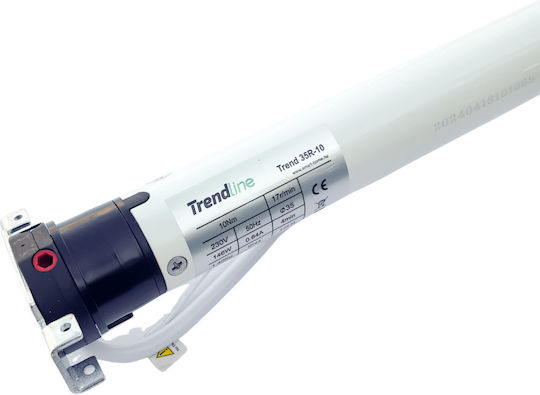

Smart Home Motor AX 40 10Nm TrendLine with built-in radio receiver

The AX 40 10Nm motor features a built-in radio receiver. The motor body has a diameter of 35mm. The motor head ensures quick and easy installation and can also be used in industrial production. The tubular motor is maintenance-free, has a long lifespan, and features thermal overload protection. The simple mechanical adjustment of limits and the silent operation mechanism make this series very successful.

Features:

• Limit switches for raising/lowering are easily adjustable with mechanisms on the motor head.
• Long-lasting retention of end positions during power outages.
• Simple and quick installation.
• Maintenance-free, with a long lifespan and thermal overload protection.
• Silent operation.

Specifications:

• The motor is TV certified.
• Dimensions, length without bearing: 605 mm.
• Motor diameter: 35 mm.
• Rotations per minute: 17rpm.
• Power: 146 W.
• Rated torque: 10 Nm.
• Maximum load: 26 kg.
• Cable length: 1.5 m.
• Axle diameter: 40 mm, octagonal.
