The case is available in two different versions: with fans and without fans. The version without fans does not include the “4F” indication in its name. As the “4F” suggests, the case includes 4 fans and also features an ARGB – PWM HUB for their control.
There is also a white version of the case.
Case dimensions:
Length: 420 mm
Width: 285 mm
Height: 399 mm
However, on the manufacturer’s official website, the length is stated as 440 mm. They have probably added an extra 20 mm due to the protrusion at the back, where the graphics card slot is located.
The case weighs about 7 kg.

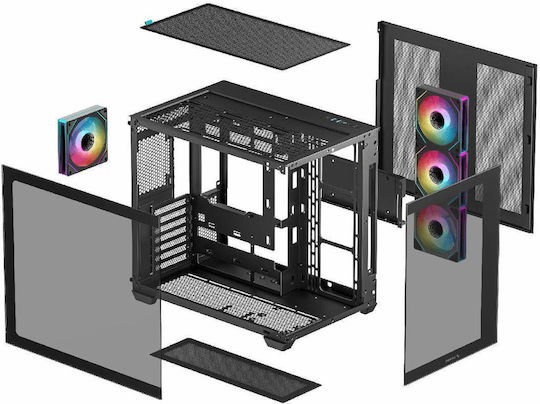

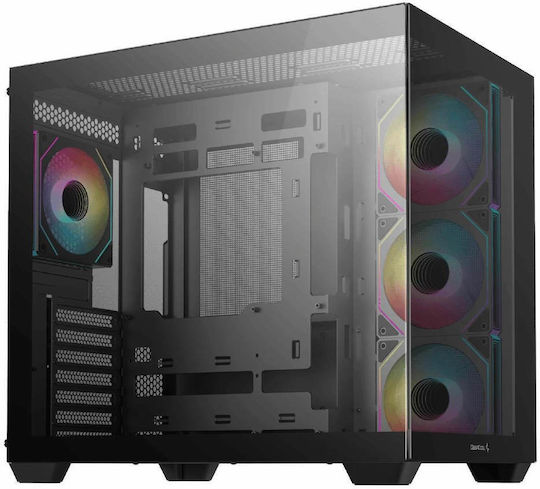

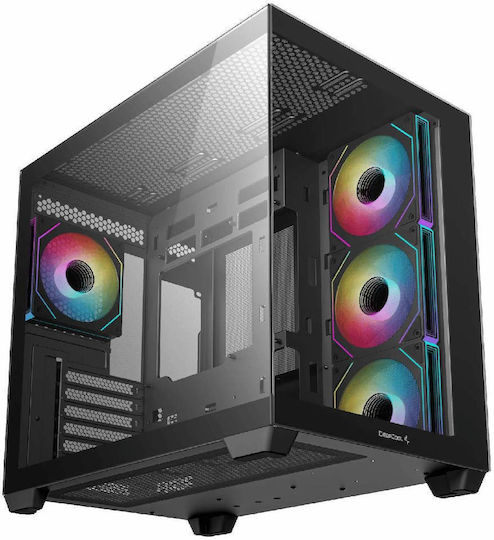

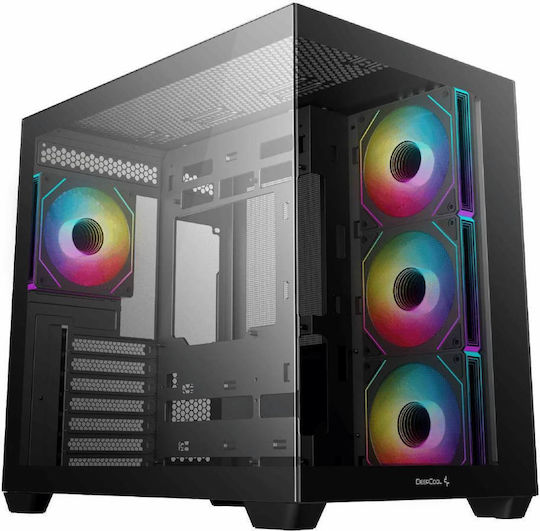

This is a Dual Chamber type case. At the front, the ARGB components are impressively displayed, while at the back are the power supply and cables, with no worries about space or tidiness.

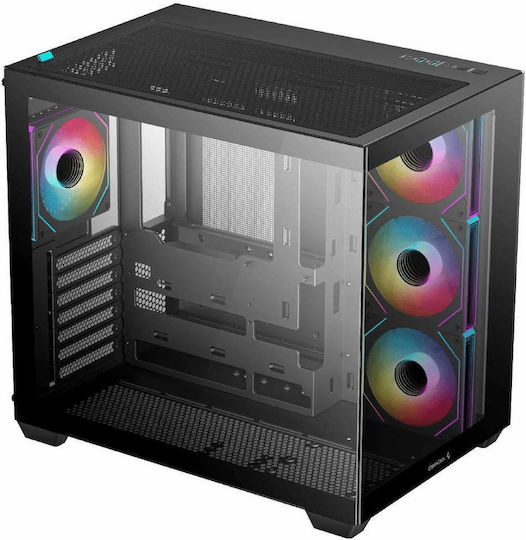

At the front and side, there are 4 mm thick tempered glass panels along the entire length. The side glass is easily and safely removed by unscrewing two screws at the back and sliding it slightly backward. However, the same does not apply to the front glass, which is secured with a total of 8 screws (4 on each side), making its removal more time-consuming.

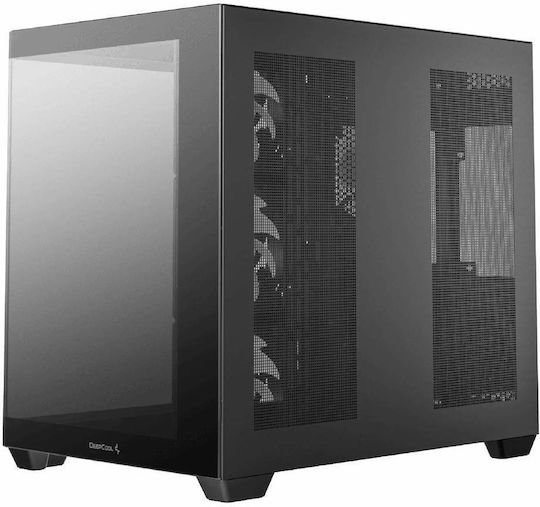

The rear cover is mesh type, allowing the side fans to pull cool air inside, while the power supply also receives sufficient cooling. So, although it is a panoramic case, it offers performance similar to mesh cases. The rear cover is also easily removed with two screws.

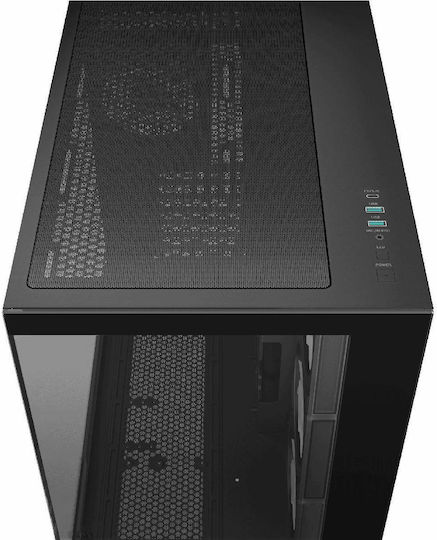

On the front panel there are:
1 x USB-C
2 x USB 3.0
1 x 3.5mm jack (mic/audio)
1 x Power Button
1 x LED Controller
With the LED Button, you can change the ARGB lighting effects, and there is also the possibility of control via the motherboard’s software.
The case supports motherboards up to ATX (no E-ATX support).
Thanks to the openings behind the motherboard tray, motherboards with rear cable design, such as the MSI B650M PROJECT ZERO, can also be used.
At the top of the motherboard area, there are two large openings for CPU power, fans, and cooler cables. At the bottom, there are three openings for front panel, audio, and GPU cables.
If you are going to use an ATX-sized motherboard, pass the cables you intend to route through the openings under the motherboard tray before installing it in the case. Otherwise, after installing the motherboard, the available space becomes very limited. However, if you use an M-ATX or Mini ITX motherboard, you will not face any problem.
Although there are sufficiently sized cable management channels around the motherboard area, they do not have covers (grommets) to hide them. Thus, from these openings, the cable clutter at the back is visible.
The case supports graphics cards up to 410 mm and has 7 expansion slots. However, there is no support for vertical GPU mounting (nor a bracket).
Fan support:
Top: 3x120 mm or 2x140 mm
Side: 3x120 mm or 2x140 mm
Rear: 1x120 mm
Bottom: 3x120 mm
140 mm fans are not supported at the rear and bottom.
Water cooling support:
Top: up to 360 mm
Side: up to 280 mm
Bottom: 120 / 240 / 360 mm
No radiator support at the rear.
For air coolers, heatsinks up to 160 mm in height are supported.
The case has several mesh surfaces for proper airflow, while there are magnetic dust filters on the top and bottom. However, there are no filters on the side mesh and at the rear.
The pre-installed fans are 3-pin 5V ARGB with infinity mirror design. The side fans are reverse.
There is no official data for the fans, but after contacting Deepcool:
- Hydraulic bearing
- 800 – 1600 RPM
- 52 CFM
- 1.8 – 2 mm H2O pressure
- 27 dB noise
Additionally, Deepcool does not sell separately the fans included in this case.
So, if you want to add the same fans at the bottom or top for uniformity and better aesthetics, this is not possible from Deepcool.
However, it is possible to find fans from other companies on the market that are similar to those included in the case.

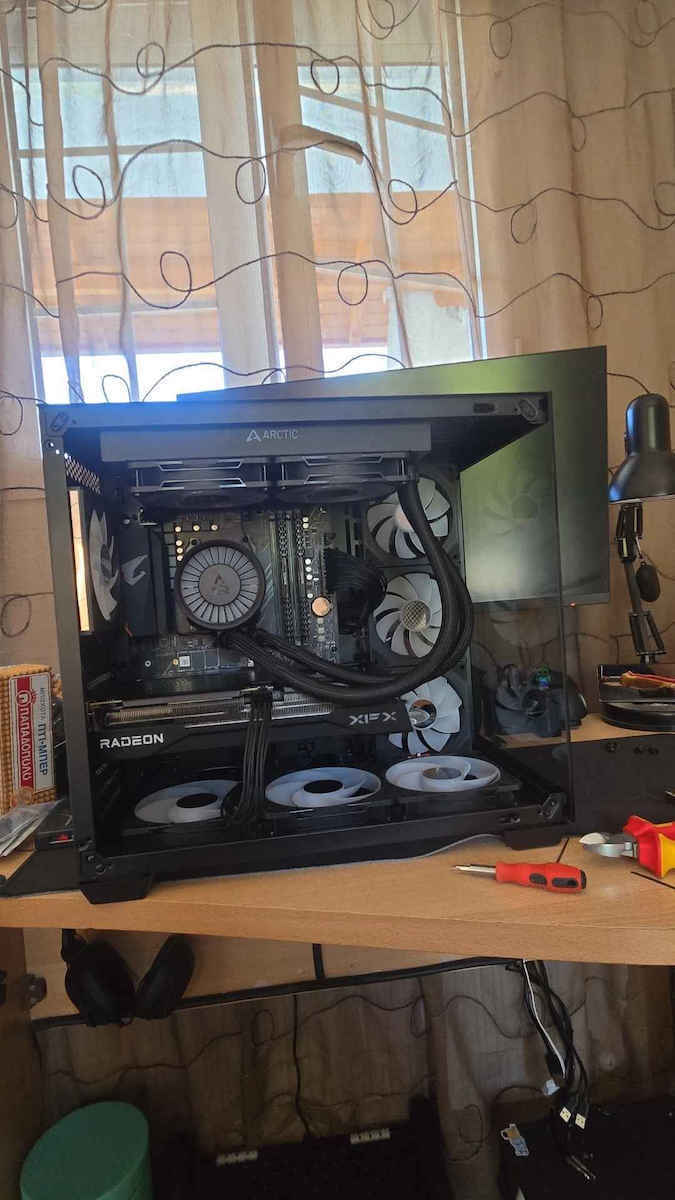

For example, I bought the Jungle Leopard - Prism 4 Max Triple Set to install at the bottom of the case. Both in appearance and performance, I can say they are almost identical.
Drive support:
2 x 3.5” HDD
3 x 2.5” SSD
The drives can be installed either on the rear modular bracket or at the front bottom. However, if installed at the front, one fan slot is lost.
The rear drive bracket is removable.
Pros:
- Good airflow
- Plenty of space for cooling (and custom loop)
- Compatibility with modern PC parts
- Good build quality
- Pre-installed fans
Cons:
- No grommets
- Lack of dust filters on some mesh areas
- Difficult removal of front panel
- Fans are not sold separately
- No support for vertical GPU
My own rating is 7 out of 10.
You can watch my review video (with English subtitles): https://www.youtube.com/watch?v=UITQ1jv5cTQ
Case διατίθεται σε δύο διαφορετικές εκδόσεις: με Fans και χωρίς Fans. Η έκδοση χωρίς Fans δεν περιλαμβάνει την ένδειξη “4F” στην ονομασία της. Όπως υποδηλώνει το “4F”, η θήκη περιλαμβάνει 4 Fans και επιπλέον διαθέτει ένα ARGB – PWM HUB για τον έλεγχό τους.
Επίσης, υπάρχει και λευκή έκδοση της case.
Διαστάσεις Case:
Μήκος: 420 mm
Πλάτος: 285 mm
Ύψος: 399 mm
Ωστόσο, στην επίσημη ιστοσελίδα του κατασκευαστή αναφέρεται ότι το μήκος είναι 440 mm. Πιθανότατα έχουν προσθέσει επιπλέον 20 mm λόγω της προεξοχής στο πίσω μέρος, εκεί όπου βρίσκεται η υποδοχή της κάρτας γραφικών.
Το βάρος της case είναι περίπου 7 κιλά.
Πρόκειται για case τύπου Dual Chamber (διπλού θαλάμου). Στο μπροστινό μέρος προβάλλονται εντυπωσιακά τα ARGB εξαρτήματα, ενώ στο πίσω μέρος βρίσκονται το τροφοδοτικό και τα καλώδια, χωρίς άγχος για τον χώρο ή την τακτοποίηση.
Στο μπροστινό και στο πλαϊνό μέρος υπάρχουν tempered glass πάνελ πάχους 4 mm σε όλο το μήκος. Το πλαϊνό τζάμι αφαιρείται εύκολα και με ασφάλεια, ξεβιδώνοντας δύο βίδες στο πίσω μέρος και σύροντάς το ελαφρώς προς τα πίσω. Ωστόσο, το ίδιο δεν ισχύει για το μπροστινό τζάμι, το οποίο είναι στερεωμένο με συνολικά 8 βίδες (4 σε κάθε πλευρά), κάτι που κάνει την αφαίρεσή του πιο χρονοβόρα.
Το πίσω κάλυμμα είναι τύπου mesh, επιτρέποντας στους πλαϊνούς fans να τραβούν δροσερό αέρα στο εσωτερικό, ενώ το τροφοδοτικό λαμβάνει επίσης επαρκή ψύξη. Έτσι, παρόλο που είναι πανοραμική case, προσφέρει απόδοση παρόμοια με mesh cases. Το πίσω καπάκι αφαιρείται επίσης εύκολα με δύο βίδες.
Στο μπροστινό panel υπάρχουν:
1 x USB-C
2 x USB 3.0
1 x 3.5mm jack (μικρόφωνο/ήχος)
1 x Power Button
1 x LED Controller
Με το LED Button μπορούν να αλλάξουν τα ARGB εφέ φωτισμού, ενώ υπάρχει και δυνατότητα ελέγχου μέσω software της μητρικής.
Η case υποστηρίζει μητρικές έως ATX (χωρίς υποστήριξη E-ATX).
Χάρη στα ανοίγματα πίσω από το tray της μητρικής, μπορούν να χρησιμοποιηθούν και μητρικές με rear cable design, όπως η MSI B650M PROJECT ZERO.
Στο πάνω μέρος της περιοχής της μητρικής υπάρχουν δύο μεγάλα ανοίγματα για καλώδια τροφοδοσίας CPU, Fans και Coolers . Στο κάτω μέρος υπάρχουν τρία ανοίγματα για καλώδια front panel, audio και GPU.
Αν πρόκειται να χρησιμοποιήσετε μητρική μεγέθους ATX, περάστε τα καλώδια που σκοπεύετε να οδηγήσετε από τα ανοίγματα κάτω από το tray της μητρικής πριν την εγκατάστασή της στη Case. Διαφορετικά, μετά την τοποθέτηση της μητρικής, ο διαθέσιμος χώρος γίνεται πολύ περιορισμένος. Αν όμως χρησιμοποιήσετε μητρική M-ATX ή Mini ITX, δεν θα αντιμετωπίσετε κάποιο πρόβλημα.
Παρόλο που γύρω από την περιοχή της μητρικής υπάρχουν κανάλια επαρκούς μεγέθους για τη διαχείριση καλωδίων, δεν διαθέτουν καλύμματα (grommets) για την απόκρυψή τους. Έτσι, από αυτά τα ανοίγματα φαίνεται η ακαταστασία των καλωδίων στο πίσω μέρος.
Η Case υποστηρίζει κάρτες γραφικών έως 410 mm και διαθέτει 7 Expansion Slots. Ωστόσο, δεν υπάρχει υποστήριξη για κάθετη τοποθέτηση GPU (ούτε bracket).
Υποστήριξη FANS:
Επάνω: 3x120 mm ή 2x140 mm
Πλάι: 3x120 mm ή 2x140 mm
Πίσω: 1x120 mm
Κάτω: 3x120 mm
Δεν υποστηρίζονται 140 mm Fans στο πίσω και στο κάτω μέρος.
Υποστήριξη υδρόψυξης:
Επάνω: έως 360 mm
Πλάι: έως 280 mm
Κάτω: 120 / 240 / 360 mm
Δεν υπάρχει υποστήριξη ψυγείου στο πίσω μέρος.
Για air cooler, υποστηρίζονται ψύκτρες έως 160 mm ύψος.
Η Case διαθέτει αρκετές mesh επιφάνειες για σωστή ροή αέρα, ενώ πάνω και κάτω υπάρχουν μαγνητικά φίλτρα σκόνης. Ωστόσο, δεν υπάρχουν φίλτρα στο πλαϊνό mesh και στο πίσω μέρος.
Pre-Installed Fans είναι 3-pin 5V ARGB με infinity mirror σχεδιασμό. Οι πλαϊνοί Fans είναι reverse.
Δεν υπάρχουν επίσημα στοιχεία για τους ανεμιστήρες, αλλά μετά από επικοινωνία με την Deepcool:
- Hydraulic bearing
- 800 – 1600 RPM
- 52 CFM
- 1.8 – 2 mm H2O πίεση
- 27 dB θόρυβος
Επιπλέον, η Deepcool δεν διαθέτει προς πώληση ξεχωριστά τους Fans που περιλαμβάνονται στη συγκεκριμένη case.
Δηλαδή, αν θέλετε να προσθέσετε τους ίδιους Fans στο κάτω ή στο πάνω μέρος για να πετύχετε ομοιομορφία και καλύτερη αισθητική, δεν υπάρχει αυτή η δυνατότητα από την πλευρά της Deepcool.
Ωστόσο, είναι εφικτό να βρείτε στην αγορά Fans από άλλες εταιρείες που είναι παρόμοιου τύπου με αυτούς που περιλαμβάνονται στη Case.
Για παράδειγμα, εγώ αγόρασα το Jungle Leopard - Prism 4 Max Triple Set για να τοποθετήσω στο κάτω μέρος της Case. Τόσο σε εμφάνιση όσο και σε απόδοση, μπορώ να πω ότι είναι σχεδόν ίδια.
Υποστήριξη δίσκοι :
2 x 3.5” HDD
3 x 2.5” SSD
Οι δίσκοι μπορούν να τοποθετηθούν είτε στο πίσω modular bracket είτε στο μπροστινό κάτω μέρος. Αν όμως τοποθετηθούν μπροστά, χάνεται μία θέση fan.
Το πίσω δίσκοι bracket είναι αφαιρούμενο.
Θετικά:
- Καλή ροή αέρα
- Άφθονος χώρος για ψύξη (και custom loop)
- Συμβατότητα με σύγχρονα pc parts
- Καλή ποιότητα κατασκευής
- Pre-Installed Fans
Αρνητικά:
- Δεν υπάρχουν grommets
-Έλλειψη φίλτρων σκόνης σε ορισμένα mesh σημεία
- Δύσκολη αφαίρεση μπροστινού panel
- Οι Fans δεν πωλούνται ξεχωριστά
- Δεν υπάρχει υποστήριξη για vertical GPU
Η δική μου βαθμολογία είναι 7 στα 10.
Μπορείτε να δείτε το δικό μου review video (με αγγλικούς υπότιτλους): https://www.youtube.com/watch?v=UITQ1jv5cTQ
