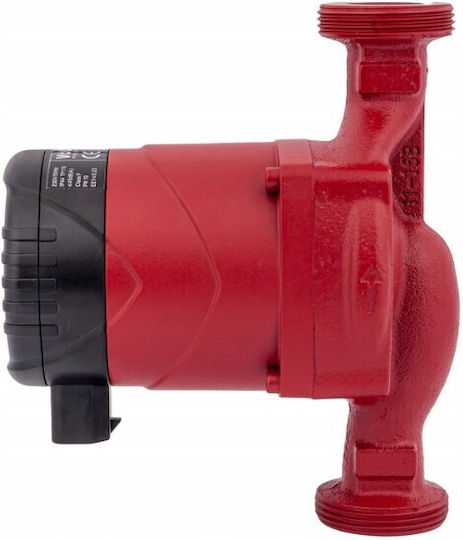

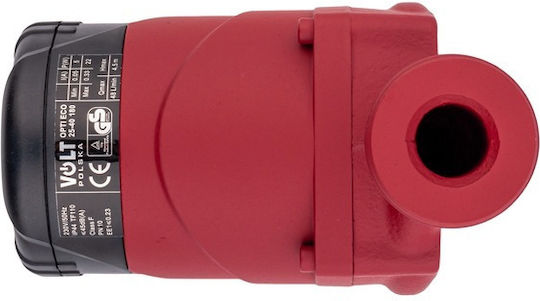

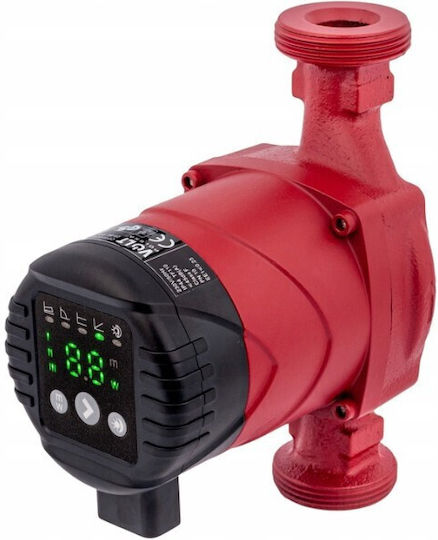

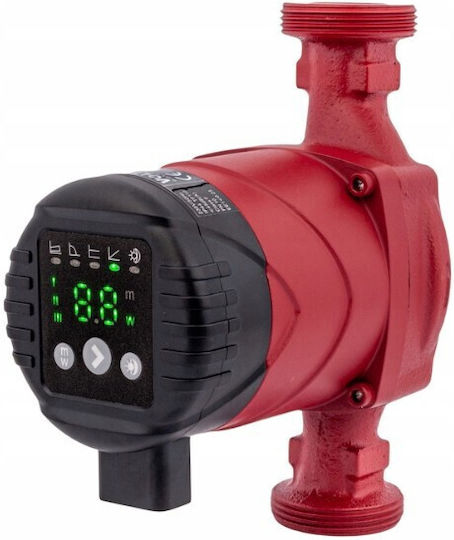

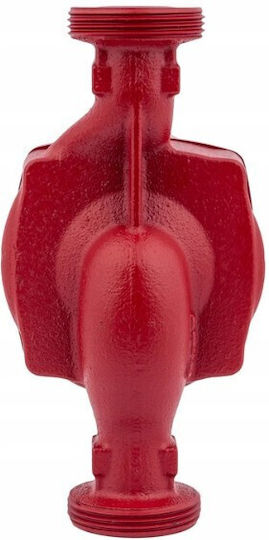

Electronic circulation pump, economical, VOLT ECO S 25-60/180 (5-45W), designed for mandatory circulation in heating systems. It can be used in single and double piping systems and for underfloor installations.

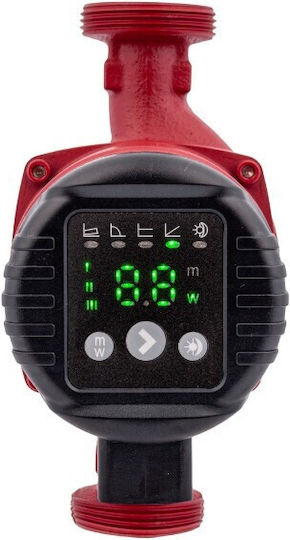

The pump is equipped with a permanent magnetic motor and a differential pressure regulator that automatically and continuously adjusts the pump's capacity to meet the actual needs of the system. The control panel of the pump is located above the motor for easy access. The indicator displays the current energy consumption.

• Adjustable speed at 3 levels
• Silent operation
• Low energy consumption (5W - 45W)
• Night mode for energy saving
• Automatic venting

The three-speed motor of the pump allows the user to adjust performance and pressure parameters to their needs. The pump has 8 operating modes:

• AUTO - Automatic pressure and performance adjustment based on system demand.
• PP2 - Higher proportional pressure-capacity.
• PP1 - Lower level of proportional pressure-capacity.
• CP2 - Higher level characteristic that maintains the pump head constant.
• CP1 - Lower level of the characteristic, maintaining the pump head constant.
• I, II, III - Manual modes that maintain a constant height.
• Night mode - After detecting a temperature drop of 0.1 degrees C/min for approximately 2 hours, it will switch to savings mode.

PARAMETERS:

• Energy class: A
• Flow per minute: 55l
• Connection diameter: 1 1/2 "
• Maximum operating pressure: 10 bar (1 MPa)
• Lift height: up to 6 m
• Protection grade: IP44
• Noise: less than 43dB
• Maximum fluid temperature: 110 degrees C

The ECO circulation pump is suitable for the following systems:

• Constant temperature heating system with variable flow
• Variable temperature piping heating system
• Air conditioning system
• Industrial circulation system
• DOMESTIC Hot Water Usage System

Product type: Circulation pump

Material: Cast iron

Power supply voltage: 230 V

Motor type: Electric

Maximum flow (l/min): 55

Color: Red

Application: Residential
