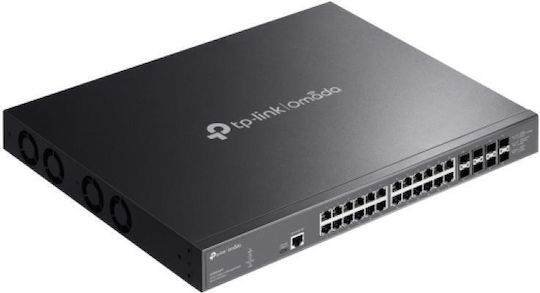

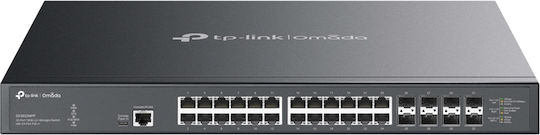

The TP-LINK Omada SX3832MPP v1 managed Layer 2 switch combines 24 Ethernet ports with PoE++ support and 8 SFP ports for fiber-optic connections. It supports powering compatible devices over Ethernet using the IEEE 802.3bt standard, while management features include QoS, VLAN, ACL, and DHCP. Its metal enclosure is 1U high and rack-mountable.

• Type: Managed Layer 2 switch
• Ethernet ports: 24, with PoE++ support
• Ethernet port speeds: 1 Gbps, 2.5 Gbps
• SFP ports: 8, for fiber-optic connections
• PoE++ standard: IEEE 802.3bt
• Switching capacity: 640 Gbps
• MAC address table: 32,000 entries
• Management features: QoS, VLAN, DHCP, ACL, HTTPS, SNMP, SSH, port mirroring, link aggregation, broadcast storm control
• VLANs: Up to 4,000
• Queues: 8
• Packet buffer: 24 MB
• DHCP features: DHCP relay, DHCP server, DHCP snooping
• IP protocols: IPv4, IPv6
• Network standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
• Mounting: Rack-mountable
• Enclosure: Metal, 1U high
• Dimensions: 440 × 330 × 44 mm
• AC input voltage: 110–240 V
• AC input frequency: 50–60 Hz
• Maximum power consumption: 1010.2 W
• Operating temperature: -5 to 45 °C
• Operating humidity: 10–90%
• Compliance certifications: CE, FCC, RoHS
