Environmental Class EN54-24: Type A, indoor applications
Protection Class IP (EN60529): IP54
Number of modes/speaker type: 1 via bi-conical, full range Ø130mm

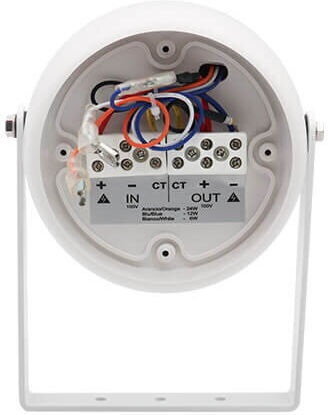

Transformer: 100V (12W - 6W - 3W)
Frequency response on-axis (-10dB): 110 ÷ 18,000 Hz
Sensitivity (@1m, 1W): 86.3 dB SPL
Maximum SPL (@1m, Pmax): 97.2 dB SPL
Coverage angle (-6dB): 360° (500 Hz), 253.5° (1 kHz), 125.5° (2 kHz), 86.8° (4 kHz), 59.4° (8 kHz)
Directivity Index DI (dB): 1.3 (500 Hz), 3.9 (1 kHz), 5.4 (2 kHz), 6.7 (4 kHz), 8.2 (8 kHz)
Directivity Factor Q: 1.4 (500 Hz), 2.4 (1 kHz), 3.5 (2 kHz), 4.6 (4 kHz), 6.6 (8 kHz)
Nominal/music power: 12W/24W
Nominal impedance @ 1KHz: 833.3Ω(12W), 1.66kΩ(6W), 3.33kΩ(3W)
Dimensions Ø - H: 140 mm - 240 mm
Aluminum support: 140 mm - 152 mm
Weight: 1.2 Kg
Material: ABS type V0 - painted aluminum grille
Color: White
- Product Number
- DSP207EN
Technical Specifications
- Power (RMS)
- 12 W
- Sensitivity
- 10 dB
Main Specifications
- Placing
- Wall
- Quantity
- Piece
- Colour
- White
Dimensions
- Width
- 13 cm
