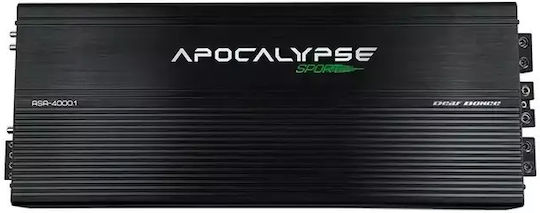

Model: ASA-4000.1

Category: Class D

Number of channels: 1

Frequency range: 10-250 Hz

• RMS power at 1 Ohm (14.4 V): 4000 W
• RMS power at 1 Ohm (12 V): 3010 W
• RMS power at 2 Ohms (14.4 V): 2620 W
• RMS power at 4 Ohms (14.4 V): 1530 W
• RMS power at 2 Ohms (bridged): 8000 W
• Minimum load resistance per channel: 1 Ohm
• Input sensitivity, low level: 0.2 - 6 V
• Low-pass filter: 35-250 Hz
• Crossover: 12 dB/oct
• Subsonic filter: 10-50 Hz
• Terminal input: 0 Ga
• Terminal output: 8 Ga
• Noise ratio: ≥ 236
• Operating voltage: 9 - 16 V
• Signal-to-noise: ≥ 92 dB
• Dimensions (LxWxH): 240.0 x 677.0 x 63.5 mm
• Weight with packaging: 11.700 kg
