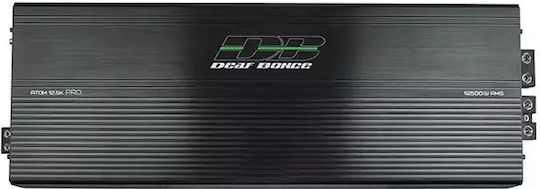

The Deaf Bonce Atom 12.5K Pro is a single-channel Class D car amplifier with a frequency range of 10 to 250 Hz. RMS power at 1 Ohm is 12,500 W at 14.4 V and 10,200 W at 12 V. At 2 Ohms, it delivers 6,950 W, and at 4 Ohms, 3,870 W, at 14.4 V.
- Number of channels: 1
- Amplifier class: D
- Frequency range: 10–250 Hz
- RMS power at 1 Ohm (14.4 V): 12,500 W
- RMS power at 1 Ohm (12 V): 10,200 W
- RMS power at 2 Ohms (14.4 V): 6,950 W
- RMS power at 4 Ohms (14.4 V): 3,870 W
- Minimum load impedance per channel: 1 Ohm
- Low-level input sensitivity: 0.2–6 V
- Low-pass filter: 40–250 Hz
- Crossover slope: 12 dB/oct
- Subsonic filter: 10–50 Hz

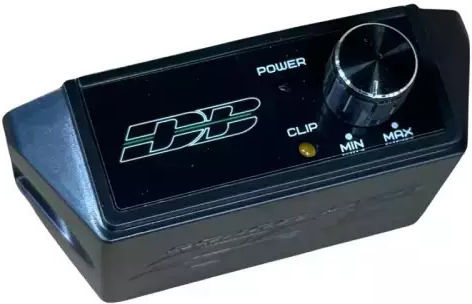

- Bass adjustment: 35–90 Hz
- Input terminal: 0 Ga
- Output terminal: 4 Ga
- Damping factor: ≥ 198
- Operating voltage: 9–16 V
- Signal-to-noise ratio: ≥ 85 dB
- Dimensions (L × W × H): 220 × 609 × 66 mm
- Number of Channels
- 1 Channel
- Output Power (4 Ohm)
- -
- Amplifier class
- D
