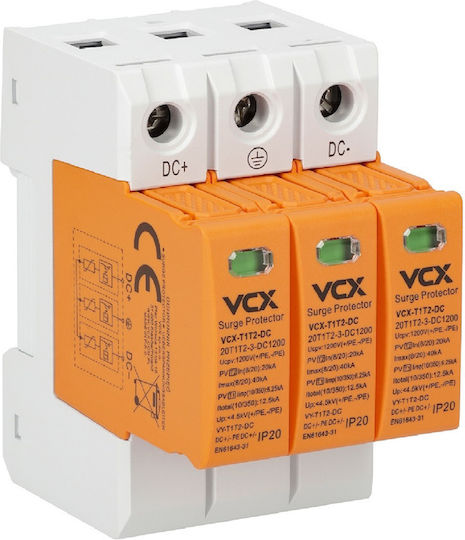

The VCX DC Surge Protection Switch is a new series of protective devices designed to protect photovoltaic installations. With an increased operating voltage of 1200V DC, it allows for use in a wide range of photovoltaic systems. The carefully designed protective mechanism has enabled the reduction of the width to 3 units (54 mm) and, most importantly, the height of the protector to 80.8 mm, facilitating installation in many of the available cutouts on the market.
Technical Specifications:- Protection class: T1 T2
- Design: WATISTORY
- Maximum connections: 35mm²
- Maximum operating voltage: Ucpv 1200 V DC
- Test current: In(8/20) 20 kA
- Maximum current: Imax(8/20) 40 kA
- Impulse current per pole: Iimp(10/350) 6.25 kA
- Total impulse current: 12.5 kA
- Protection level at voltage: up to <4.5 kV
- Storage temperature: -30/+70°C
- Operating ambient temperature: -30/+50°C
- Ingress protection class: IP 20
Specifications
- Number of Poles
- 3
- Nominal Voltage
- 1200 V
Features & Functions
- WiFi
- No
