Reliable and safe automation

The automation features motors that operate on 24V DC, providing a single solution for residential use and allowing the use of batteries for backup power (not included). If not equipped with backup batteries, in case of power outage, the system can be operated using the included key. It can be installed on most garage doors and offers the possibility of partial opening with a single motor (pedestrian mode), automatic closing timer, adjustable speed, and the remote controls have a range of up to 40m in open space.

It should not be installed on solid garage doors or doors with polycarbonate applied.

Main features:

• Maximum garage door length 2m/panel
• Maximum weight 150Kg/panel, provided it is not solid or does not have polycarbonate applied
• Motor capacity 40W
• Maximum stroke per motor 300mm
• Stroke speed 1.6cm/s
• Motor rotation speed 200RPM
• Maximum opening angle 110 degrees
• Arm length 730mm, extended arm length 1045mm
• Operating temperature -45 to 50 degrees C
• Functions: partial opening, automatic closing timer
• Dimensions: 799x90x190mm
• Weight: 12.9Kg
• Maximum remote control range: 40m (in open space)
• Use: residential

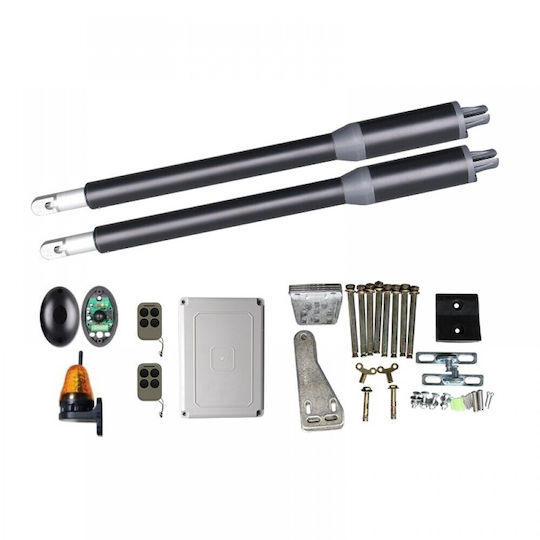

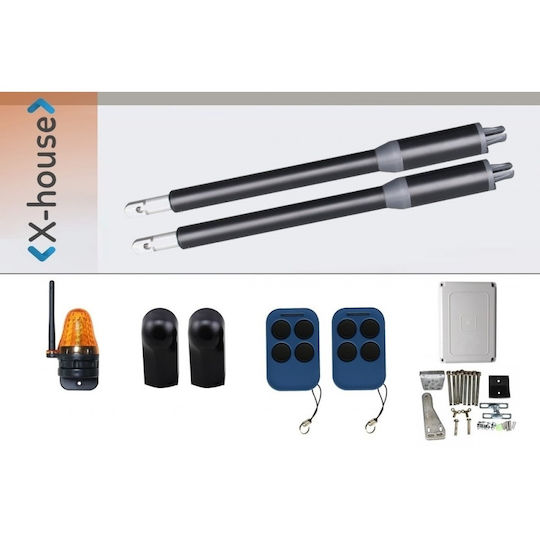

The set includes:

• 2 arms with 24V motors
• 1 controller (logic board, power supply, remote control receiver)

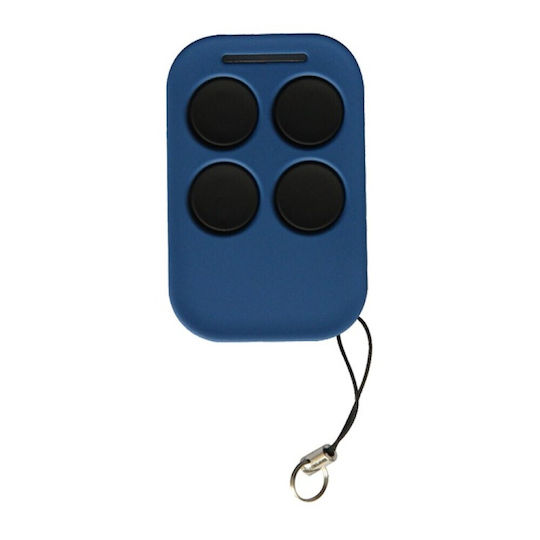

• 2 remote controls

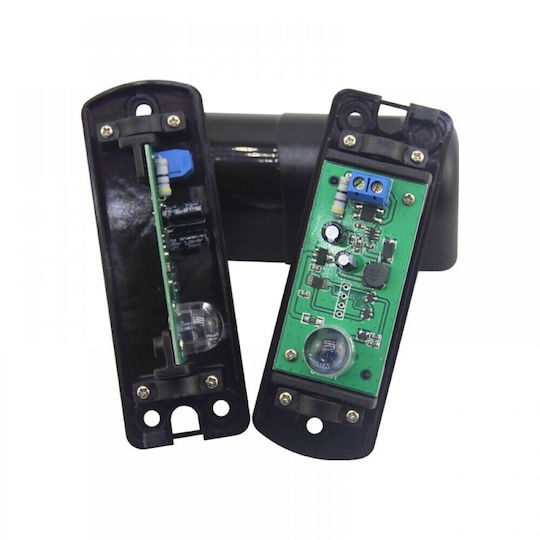

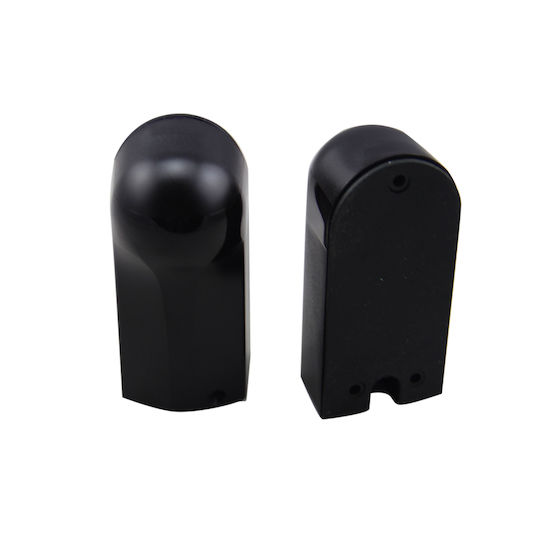

• set of photo cells

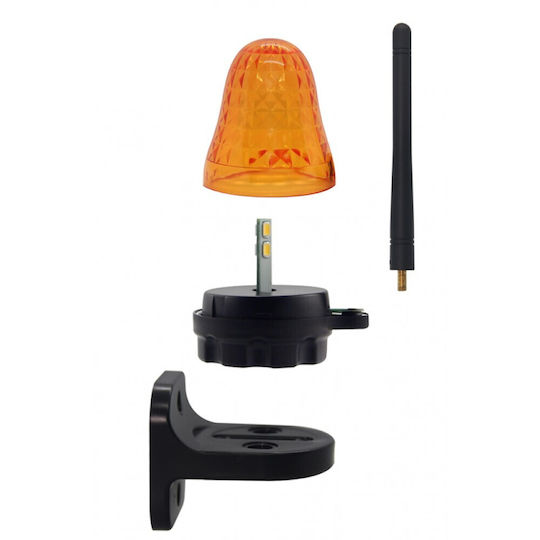

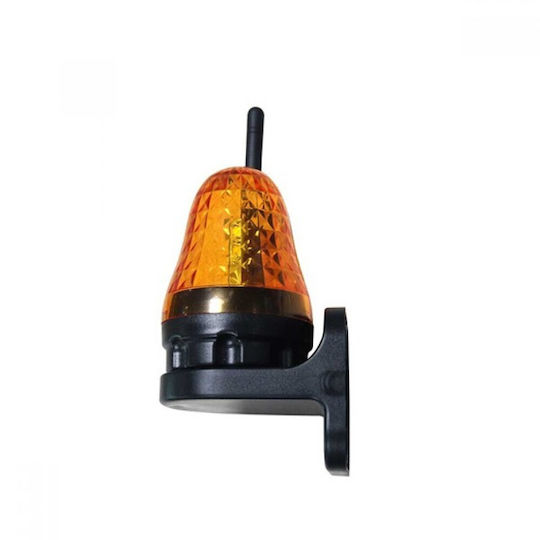

• signal with built-in antenna
• manual release key
• bracket, screws
• user manual
