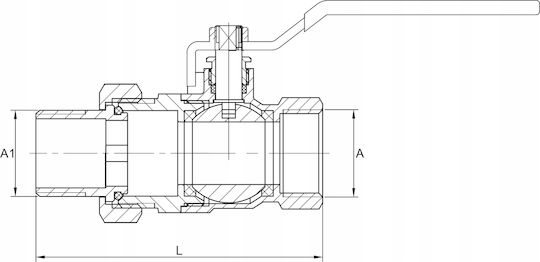

The 3130-R “Spanish” type ball valve is intended for water supply and central heating systems in buildings. It is suitable for water or a 50/50% water-glycol solution, as well as for drinking water.
The valve is made of brass and features a PTFE ball seal and a packing gland. The handle is made of blue steel, while the body is sandblasted and nickel-plated.
- Type: Ball valve
- Material: Brass
- Ball seal: PTFE
- Packing gland: Yes
- Handle: Blue steel
- Body finish: Sandblasted and nickel-plated
- Operating medium: Water or a 50/50% water-glycol solution
- Suitable for: Drinking water
- Inlet thread: 1 1/4" male
- Outlet thread: 1 1/4" female
- Length: 118.5 mm
- Construction Material [Pharmaceutical]
- Brass
- with Connector
- No
- Thread Size
- 1/4"
