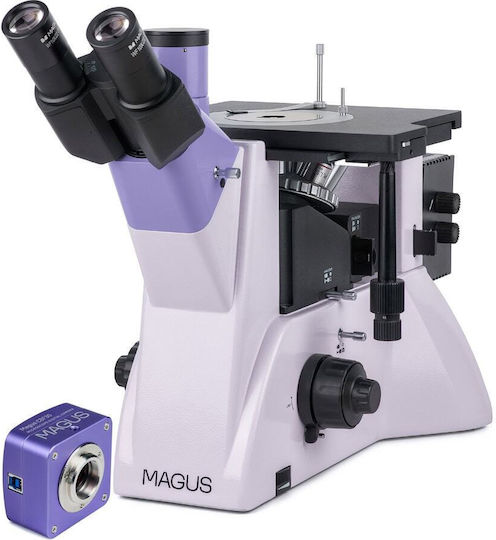

The MAGUS Metal V700 inverted metallurgical microscope is designed for examining the microstructure of metals, alloys, and semiconductors using reflected light. Its base can hold samples weighing up to 2 kg. The microscope is suitable for bright field and polarized light observations, features a side camera port and a trinocular tube, making it ideal for a wide range of laboratory and industrial applications.
Digital Camera
The MAGUS CBF30 digital camera allows you to capture photos and videos through the microscope, edit files, organize presentations, and perform measurements. The 6.3 MP sensor enables you to take bright, detailed photos and videos with a maximum resolution of 3072x2048 px.
Optics
The microscope features a trinocular head with adjustable eyepiece positions and 180° rotation. The objectives are designed for long working distances and the basic configuration offers magnifications from 50x to 1000x.
Illumination
The bright reflected illumination uses a 30 W lamp with adjustable brightness. The lighting can be adjusted on three axes.
Stage and Focusing Mechanism
The stage is quite large (242x200 mm) and moves on two axes. Image sharpness can be adjusted using coarse and fine focusing knobs.
Main Features of the Microscope:
- Examination of large and heavy samples using bright field and polarized light microscopy methods.
- Large stage and rotating plates with holes of 10 mm, 20 mm, and 30 mm.
- 180° rotation of the trinocular head during assembly.
- Two options for digital camera mounting.
- Bright observations with adjustable illumination.
- Wide range of additional accessories.
Main Features of the Camera:
- Recommended for use with low magnification objectives.
- Clear image even in low light conditions.
- Frame rate of 59 fps, suitable for motion.
Package Includes:
- MAGUS CBF30 digital camera.
- Base with focusing mechanism and stage.
- Reflected light illuminator.
- Trinocular head.
- Planachromatic infinity-corrected objectives.
- 10x/22 mm eyepieces.
- AC power cable.
Microscope Specifications:
- Type: optical, digital, metallurgical.
- Magnification: 50 – 1000.
- Illumination: halogen.
- Stage size: 242 x 200 mm.
- Type
- Digital, Polarizing
- Educational
- No
- Magnification
- Yes
- Head
- Trinocular
- Magnification (x)
- -
- Lenses
- 4x, 10x, 20x, 40x, 1000x, 1x, 5x, 60x, 100x
- Lighting
- Halogen
- USB
- Yes
