Description
Specifications

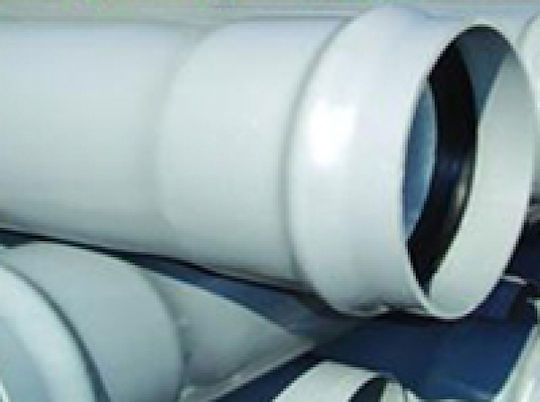

Plastic pipe for underground water supply and irrigation networks.
It is produced in a straight length of 6 meters with an integrated socket connection (watertight sealing with a rubber ring) in nominal diameters ranging from 50 to 500mm, in accordance with European standards ELOT-EN.
- Outer Diameter: 50mm, Wall Thickness: 3.7mm, Inner Diameter: 42.6mm, Weight: 0.809kg/m
- Outer Diameter: 63mm, Wall Thickness: 4.7mm, Inner Diameter: 53.6mm, Weight: 1.29kg/m
- Outer Diameter: 75mm, Wall Thickness: 5.6mm, Inner Diameter: 63.8mm, Weight: 1.82kg/m
- Outer Diameter: 90mm, Wall Thickness: 6.7mm, Inner Diameter: 76.6mm, Weight: 2.61kg/m
- Outer Diameter: 110mm, Wall Thickness: 8.2mm, Inner Diameter: 93.6mm, Weight: 3.9kg/m
- Outer Diameter: 125mm, Wall Thickness: 9.3mm, Inner Diameter: 106.4mm, Weight: 5.01kg/m
- Outer Diameter: 140mm, Wall Thickness: 10.4mm, Inner Diameter: 119.2mm, Weight: 6.27kg/m
- Outer Diameter: 160mm, Wall Thickness: 11.9mm, Inner Diameter: 136.2mm, Weight: 8.17kg/m
- Outer Diameter: 200mm, Wall Thickness: 14.9mm, Inner Diameter: 170.2mm, Weight: 12.8kg/m
- Outer Diameter: 225mm, Wall Thickness: 16.7mm, Inner Diameter: 191.6mm, Weight: 16.1kg/m
- Outer Diameter: 250mm, Wall Thickness: 18.6mm, Inner Diameter: 212.8mm, Weight: 19.9kg/m
- Outer Diameter: 280mm, Wall Thickness: 20.8mm, Inner Diameter: 238.4mm, Weight: 24.9kg/m
- Outer Diameter: 315mm, Wall Thickness: 23.4mm, Inner Diameter: 268.2mm, Weight: 31.5kg/m
The pipes are made from rigid PVC 100.
- Diameter
- Φ315
- Pieces
- 1 pcs
- Length
- 6 m
