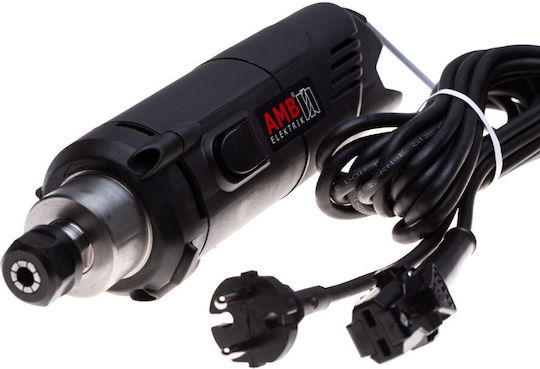

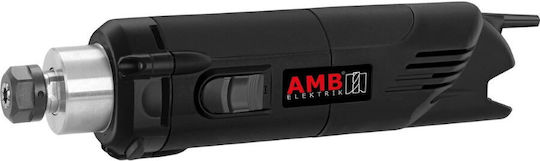

AMB 1050 FME-P DI 230V Milling Motor

The AMB 1050 FME-P DI milling machine is a powerful and durable electric motor with speed adjustment via a controller. With a power of 1050W, it is suitable for general milling tasks and can be specifically used on CNC machines that allow for direct speed adjustment of the motor.

Main features include:

• Overheating protection: The electronic protection prevents the motor from overheating.
• Electronic control system: Ensures stable speed even under higher loads.
• Simple and quick tool changes: The spindle locking mechanism facilitates tool changes.
• Double bearings: Provide higher milling forces.

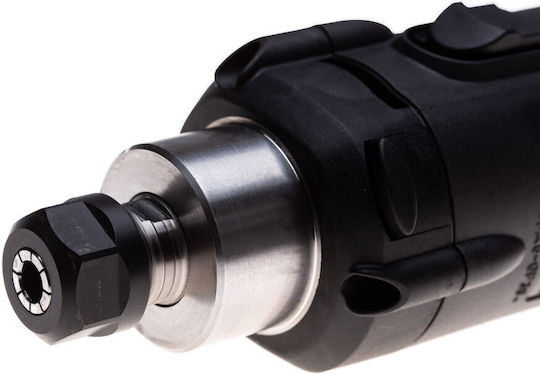

• Elastic ER 16 collets: Ensure precise and tight holding of milling tools, with a high degree of concentricity.

The machine features electronic housings that offer complete dust protection, while the bearing seals are of high quality to protect against dust ingress. Weighing only 1.7 kg and with an ergonomic design, it allows for free use or easy mounting in work.

Technical specifications:

• Speed: 5,000-25,000 rpm
• Clamp diameter: Ø 43mm
• 4m power cable with plug locking system
• One standard elastic collet ER16 8mm included
