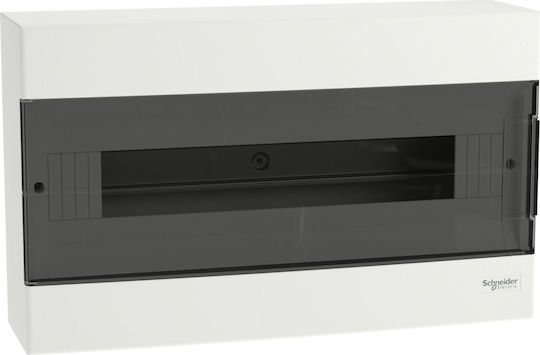

The Easy9 EU Electrical Panel is a wall-mounted enclosure designed primarily for modular equipment in residential constructions. It includes 1 row that accommodates 18 standard modular units of 18 mm dimensions. It can house all types of modular equipment.
It comes with 1 grounding terminal block and 1 neutral terminal block with their supports, each terminal block has 16 holes (8x16mm² + 8x10mm²). It features reversible compact doors in smoke color, with a 180° opening angle. The color of the enclosure is white (RAL 9003) and it is intended for indoor installation.

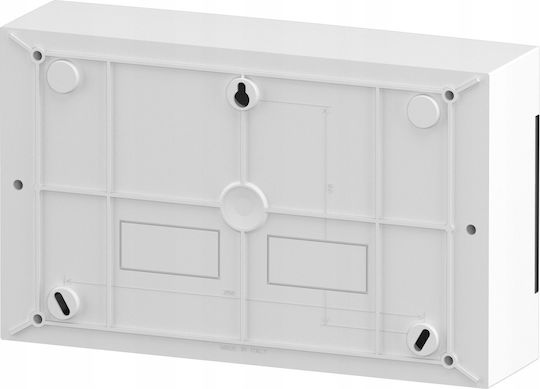

The protection rating is IP40 with closed doors and IP30 with open doors. The enclosure does not have pre-drilled holes; they can be created freely using a drill. It is intended for new or renovated installations in residential buildings.
The internal elements include a removable frame with a DIN rail and a front cover with a cut-out. Its dimensions are: (H) 364 mm x (W) 317 mm x (D) 103 mm, the width expressed in modular units of 18 mm is 36, and the weight of the enclosure is 1.20 kg. The enclosure is made of self-extinguishing plastic material, with fire and heat resistance of 650°C for 30 minutes, according to IEC 60695-2-10.
The electrical insulation category is Category II (double insulation). The pollution degree is 2. According to IEC 62262, the impact protection rating is IK07. The operating temperature ranges from -25°C to +60°C, while the storage temperature ranges from -25°C to +70°C. The enclosure complies with the IEC 60670-1-24 standard.
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
