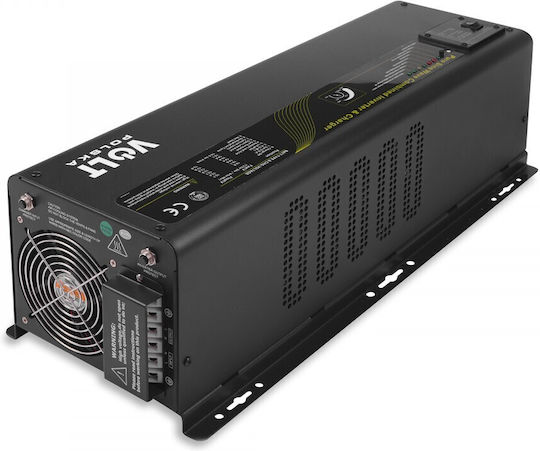

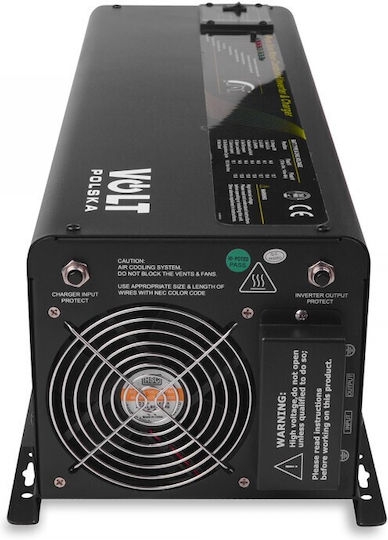

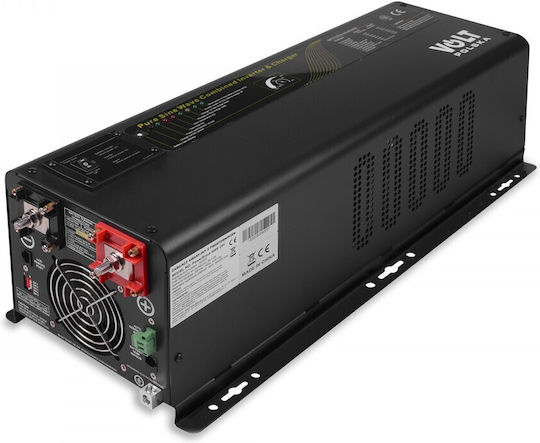

The Inverter Volt Power Sinus 6000W / 18000W 24V / 230V is an emergency power supply system, combining an inverter, charger, and automatic AC switch into a single unit. It is mainly used as a UPS with Pure Sine Wave output. Ideal for applications requiring stable voltage and high starting current up to 6000W, with a temporary current up to 18000VA for 20 seconds. It is compatible with a variety of 24V batteries.
Supported devices:
- Refrigerators
- Freezers
- Compressors
- Caravans
- Central heating pumps
- Central heating ovens
- Air-cooled units
- Solar systems
- Security systems
Protections:
- Overload
- High temperature
- Low voltage
- Battery overcharge
Technical specifications:
- Total power (peak): 18000VA
- Continuous power: 6000W
- Battery voltage: 24V
- Network/battery switching time: 10 ms
- Output frequency: 50.3 Hz
- Output voltage: 230V
- Charging current: 85 +/- 5A
- Efficiency: up to 88%
- Power factor: 0.8-1 cos
- Input voltage range (battery): 21V-30V ± 0.5V DC
- Input voltage range (network): 164-243V
- Dimensions: 597 x 242 x 198 mm
- Weight: 31.5 kg
Functions:
- Protection against complete battery discharge
- Overvoltage protection at 28V and undervoltage at 22V
- Overcharge protection and automatic restart
- Protection against poor connection
Package contents:
- Inverter 5000W 24V
- Warranty and compliance certificate
- User manual
- Power
- 6000 W
- DC Input Voltage
- 24 V
- AC Output Voltage
- 230 V
- Number of USB Ports
- -
- Number of Sockets
- -
- Type
- Pure Sinewave
