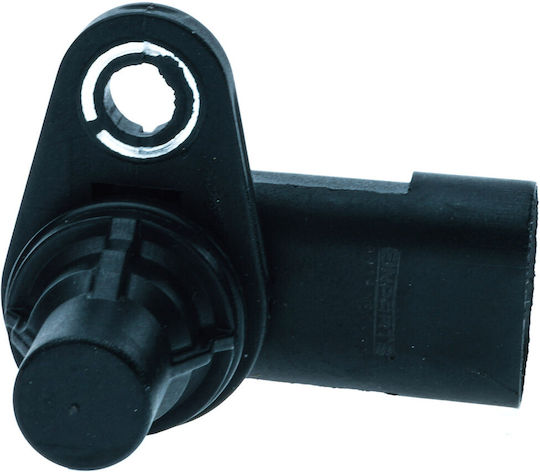

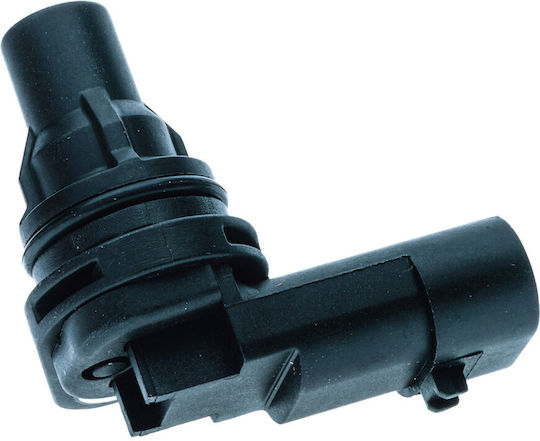

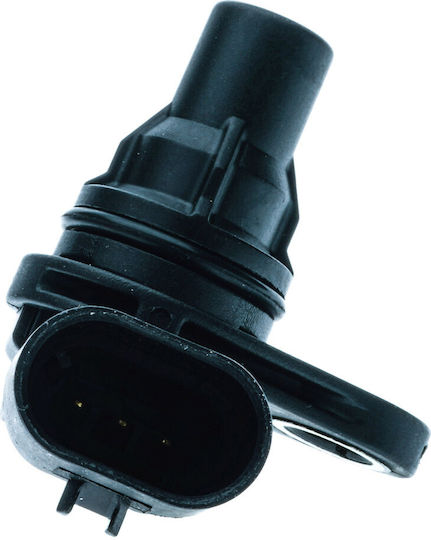

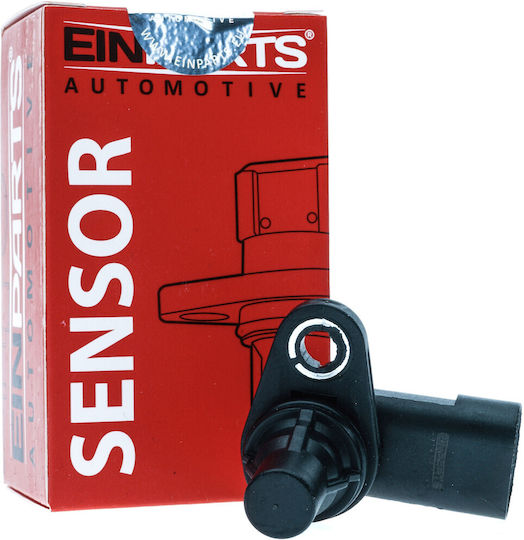

Engine Control Unit Camshaft Position Sensor CKP - Monitors the rotation of the camshaft, allowing precise determination of timing and ignition phases. This information is transmitted to the engine control unit, which adjusts fuel injection and ignition accordingly to ensure optimal engine performance.
Technical specifications:
- Number of pins: 3
- Type: Hall Sensor
- Resistance: 3500 Ohm
- Connector shape: Oval
Dedicated to:
- Opel ASTRA H GTC (A04) 2005/03-2010/10 - 88KW/120PS 1.9 (1910 cc)
- Opel ASTRA J (P10) 2011/07-2015/10 - 96KW/131PS 1.7 (1686 cc)
- Opel ASTRA J GTC 2.0 CDTI (08) 2015/04-2015/10 - 96KW/131PS 2.0 (1956 cc)
- Opel INSIGNIA A (G09) 2012/01-2017/03 - 143KW/195PS 2.0 (1956 cc)
- Opel INSIGNIA A (G09) 2009/05-2011/12 - 140KW/190PS 2.0 (1956 cc)
- Opel INSIGNIA A (G09) 2010/06-2017/03 - 118KW/160PS 2.0 (1956 cc)
- Opel INSIGNIA A sedan (G09) 2008/07-2017/03 - various power outputs and engines
- Opel INSIGNIA A Sports Tourer (G09) 2008/07-2017/03 - various power outputs and engines
- Saab 9-5 (YS3E) 2006/01-2009/12 - 110KW/150PS 1.9 (1910 cc)
- Saab 9-5 Kombi (YS3E) 2006/01-2009/12 - 110KW/150PS 1.9 (1910 cc)
- Alfa Romeo 147 (937_) 2001/01-2010/03 - various power outputs and engines
- Alfa Romeo 156 (932_) 1997/09-2005/09 - various power outputs and engines
- Alfa Romeo 156 Sportwagon (932_) 1997/02-2006/05 - various power outputs and engines
- Alfa Romeo 159 (939_) 2005/09-2011/11 - various power outputs and engines
- Alfa Romeo 159 Sportwagon (939_) 2006/03-2012/12 - various power outputs and engines
- Alfa Romeo 166 (936_) 2003/10-2007/06 - various power outputs and engines
- Alfa Romeo BRERA (939_) 2006/01-2011/03 - 147KW/200PS and 154KW/210PS 2.4 (2387 cc)
- Alfa Romeo GT (937_) 2003/11-2010/09 - 110KW/150PS and 125KW/170PS 1.9 (1910 cc)
- Alfa Romeo SPIDER (939_) 2006/03-2011/03 - 147KW/200PS and 154KW/210PS 2.4 (2387 cc)
- Fiat BRAVO II (198_) 2007/04-2014/12 - 110KW/150PS 1.9 (1910 cc)
- Fiat CROMA (194_) 2005/06-present - various power outputs and engines
- Fiat STILO (192_) 2003/09-2006/11 - various power outputs and engines
- Fiat STILO Multi Wagon (192_) 2003/09-2008/08 - various power outputs and engines
- Fiat STILO VAN (192_) 2003/09-2008/08 - various power outputs and engines
- Lancia THESIS (841_) 2003/05-2009/07 - 120KW/163PS and 129KW/175PS 2.4 (2387 cc)
- Opel ASTRA H (A04) 2004/04-2010/10 - various power outputs and engines
- Opel ASTRA J (P10) 2009/09-2015/10 - various power outputs and engines
- Opel INSIGNIA A (G09) 2008/07-2017/03 - various power outputs and engines
