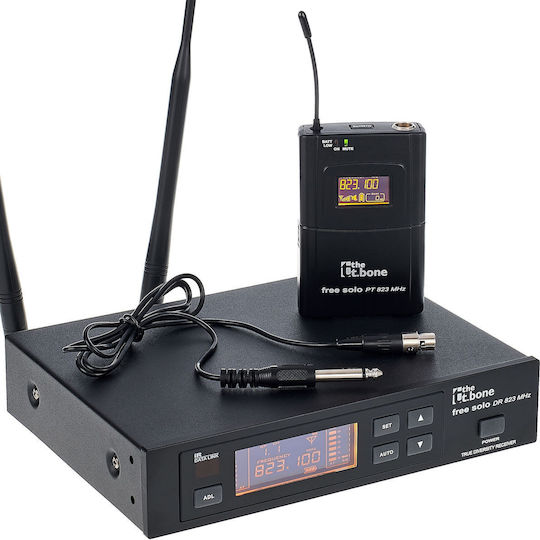

The T.bone Free Solo Wireless System Pt is designed for guitar or bass and includes a bodypack transmitter. The receiver features frequency scanning, adjustable squelch with threshold indication, and an adjustable AF output. Settings are transferred from the receiver to the transmitter via infrared.
The transmitter has a plastic housing, an LCD display, and a 3-pin male TQG connector. The system includes a guitar cable, a plastic case, and rack-mounting hardware.
- Type: UHF wireless system
- Application: Guitar or bass
- Frequency band: 823–832 MHz
- Frequency groups: 8 pre-programmed groups, each with 8 available channels
- User channel: 1
- Frequency step: 25 kHz
- Transmitting power: Adjustable to 5 mW, 10 mW, or 20 mW
- Receiver functions: Frequency scanning and adjustable squelch with threshold indication
- AF output: Adjustable
- Settings transfer: Via infrared from the receiver to the transmitter
- Control tone: Pilot tone
- Receiver housing: 9.5", 1 U, with 2 BNC antenna outputs
- Audio outputs: XLR and jack
- Receiver power supply: 12 V, 0.5 A DC, positive polarity on the inside
- Transmitter housing: Plastic
- Transmitter display: LCD
- Transmitter connector: 3-pin male TQG
- Transmitter power supply: 2 AA batteries or rechargeable batteries, not included
- Included in the package: Guitar cable, plastic case, and rack-mounting hardware
