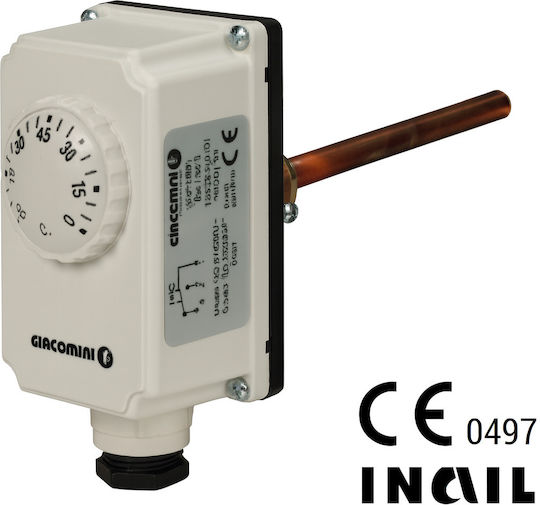

The Giacomini K373Y021 thermostat is designed for automatic regulation of water temperature in heating systems, making it ideal for use in heat stations and boiler rooms. The device features a sensitive immersed bulb that is installed directly onto the heating pipe, ensuring precise temperature control from 0 to 90°C with adjustment via a front dial.

When the set temperature is reached, the thermostat cuts off the heat flow, and automatically restarts when the temperature drops below the desired level. It has a metal housing with a 1/2” NPT-M connection and a maximum factory pressure of 10 bar, as well as resistance to temperatures up to 125°C in the bulb. This model complies with EN 60730-1 and EN 60730-2-9 standards, and bears the CE mark and INAIL approval according to Italian regulations.

• Temperature adjustment range: 0 to 90°C
• Connection: 1/2” NPT-M
• Bulb length: 97 mm

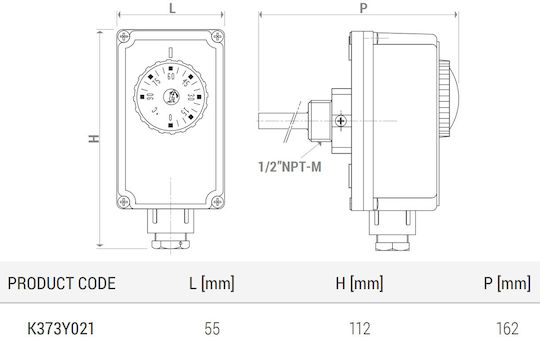

• Dimensions: 55 x 112 x 162 mm (W x H x D)
• Maximum pressure: 10 bar
Maximum thermostat head temperature: 80°C Maximum bulb temperature: 125°C
• Voltage: 250V
• Protection class: IP40
• Insulation class: I
• Certifications: CE, INAIL

Advantages:

• Accurate water temperature control
• Easy to install directly onto the pipe
• Durable construction, resistant to high temperatures
• Automatic operation with cut-off and restart based on settings
• Compliant with European standards and directives

Color: Grey

Protection level: IP40

Material: Plastic, Metal

Packaging contents: 1 x Thermostat, 1 x Enclosure

Height: 112 mm

Width: 162 mm

Length: 162 mm

Weight: 0.27 Kg

Thickness: 55 mm

Compatible brand: Universal

Requires batteries: No

Use: Optimization of heating system

Power supply type: Mains

Intended for: Boilers, Heat stations

Product type: Thermostat
