Giacomini Ball Valve Fitting R252y004 Pump Connection Diameter by Compression 28 mm x 1 1/2" Internal Thread Brass
Water Switch & Valves

Giacomini Ball Valve Fitting R252y004 Pump Connection Diameter by Compression 28 mm x 1 1/2" Internal Thread Brass Code: R252Y004

The Giacomini R252Y004 connection is designed for connecting pumps or mixing valves in heating and cooling systems. It is a ball valve with standard flow, allowing for safe connection and the ability...
The Giacomini R252Y004 connection is designed for connecting pumps or mixing valves in heating and cooling systems. It is a ball valve with standard flow, allowing for safe connection and the ability to shut off the water cycle whenever needed. The product is made from high-quality brass in accordance with UNI EN 12165 CW617N and features an EPDM gasket and...
See Description & Specifications See Description & Specifications
22 30 €
23 Coins 23 Coins
Delivery by Tue, 13 Oct
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
Sent from Romania
From Bricoo
Romania
8 pieces
See Hydraulic Equipment on the page of Bricoo
What if I want to return it?

You can return it for free within 14 days. We will come to your place, return it for free, and you will get your money back.

Questions
Review the product
Product report

Description & Specifications

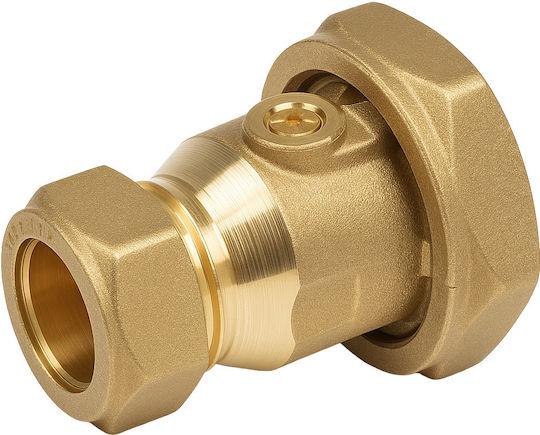

The Giacomini R252Y004 connection is designed for connecting pumps or mixing valves in heating and cooling systems. It is a ball valve with standard flow, allowing for safe connection and the ability to shut off the water cycle whenever needed. The product is made from high-quality brass in accordance with UNI EN 12165 CW617N and features an EPDM gasket and O-ring for perfect sealing. The connection includes a compression fitting Ø28 and a female G 1½" outlet with a tightening nut. Operation is simple, using a screwdriver or 5 mm Allen key, without a handle, making it ideal for compact pump groups or spaces with limited room.

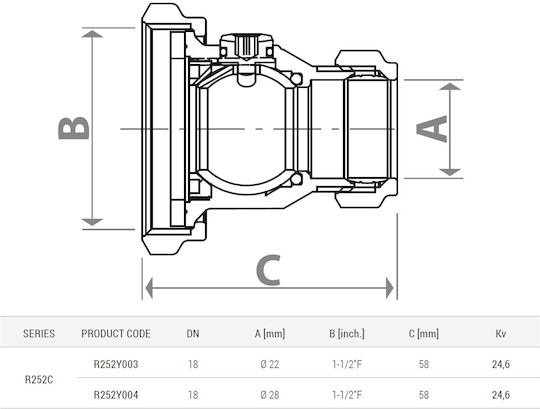

Technical specifications:

  • Type: Ball valve, standard flow
  • Connections: Ø28 x G 1½" female nylon
  • Body material: Brass CW617N according to UNI EN 12165
  • Seal and O-ring: EPDM
  • Temperature range: 5 ÷ 110 °C
  • Maximum working pressure at 20 °C: 0.7 MPa (7 bar)
  • Maximum static pressure (open/closed): 4.0 MPa (40 bar)
  • Flow Kv: 24.6
  • Use: Pump connection, mixing valve, heating or cooling installations

Advantages:

  • Fast and secure connection between pump and system
  • Ability to lock the circuit without disassembly
  • Easy operation with screwdriver or 5 mm Allen key
  • Solid construction, resistant to corrosion
  • Ideal for compact installations or pump groups

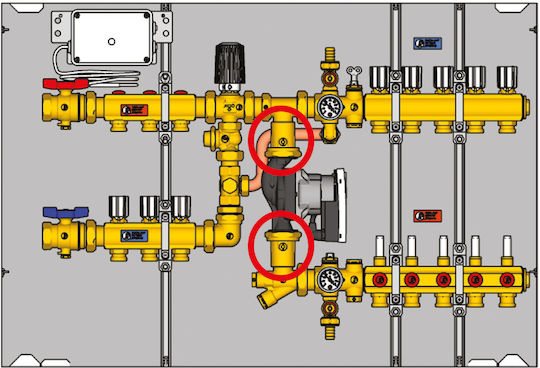

The installation is performed with a pump onto the distributor. The open and close functions are executed using a screwdriver or 5 mm Allen key.

Dimensions: Weight: 0.45 Kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
R252Y004
Construction Material [Pharmaceutical]
Brass
with Connector
No
Gender
Female
Thread Size
1-1/2"
