Giacomini R250x005 Ball Valve 1 Inch Internal Thread Red Lever Handle Nickel-plated Brass
Water Switch & Valves

Giacomini R250x005 Ball Valve 1 Inch Internal Thread Red Lever Handle Nickel-plated Brass

Valves & Switches - Standard full ball valve made of nickel-plated brass CW617N, equipped with 1” internal threaded connections on both sides. It is used in heating and cooling systems, water...
Valves & Switches - Standard full ball valve made of nickel-plated brass CW617N, equipped with 1” internal threaded connections on both sides. It is used in heating and cooling systems, water circuits, or networks with non-hazardous gases and hydrocarbon liquids. The R250X005 model features a metal lever, processed for corrosion resistance, and coated with...
See Description & Specifications See Description & Specifications
24 64 €
25 Coins 25 Coins
Delivery by Tue, 13 Oct
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
Sent from Romania
From Bricoo
Romania
20+ pieces
See Hydraulic Equipment on the page of Bricoo
What if I want to return it?

You can return it for free within 14 days. We will come to your place, return it for free, and you will get your money back.

Questions
Review the product
Product report

Description & Specifications

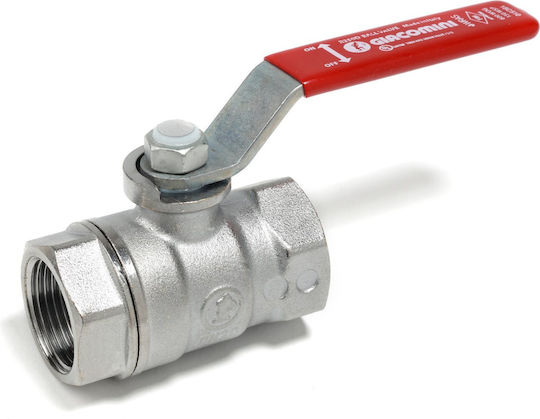

Valves & Switches - Standard full ball valve made of nickel-plated brass CW617N, equipped with 1” internal threaded connections on both sides. It is used in heating and cooling systems, water circuits, or networks with non-hazardous gases and hydrocarbon liquids. The R250X005 model features a metal lever, processed for corrosion resistance, and coated with red PVC for easy and safe operation. The valve shaft has a double O-ring for reliable sealing, and the nut has a corrosion-resistant coating, sealing, and a guarantee mark. Its durable construction and quality materials ensure stable operation even at high pressures. Technical Characteristics:
  • Valve Type: ball valve, standard cross-section
  • Connections: 1” internal threaded x 1”
  • Body Material: brass CW617N according to UNI EN 12165
  • Finish: nickel-plated (chromium version)
  • Character: steel with anti-corrosion treatment and red PVC coating
  • Seals: double O-ring on the shaft for secure sealing
  • Size: standard
  • Maximum Operating Pressure:
    • 35 bar (3.5 MPa) for water and non-hazardous gases
    • 12 bar (1.2 MPa) for hydrocarbon liquids
  • Operating Temperature:
    • -20°C to +185°C (dry saturated steam 1.05 MPa)
    • -20°C to +60°C for hydrocarbon liquids
  • Minimum Temperature: -20°C (with 50% glycol solutions)
  • Nominal Flow Rate (Kv): 36.3
  • Construction Standard: UNI EN 12165
Special Features:
  • Body and nut made of forged brass for high-pressure resistance.
  • Shaft with double O-ring for long-lasting sealing.
  • Ergonomic and durable metal lever processed with red PVC.
  • Safe operation at high pressures and temperatures.
  • Suitable for water, gases, or non-hazardous hydrocarbons.

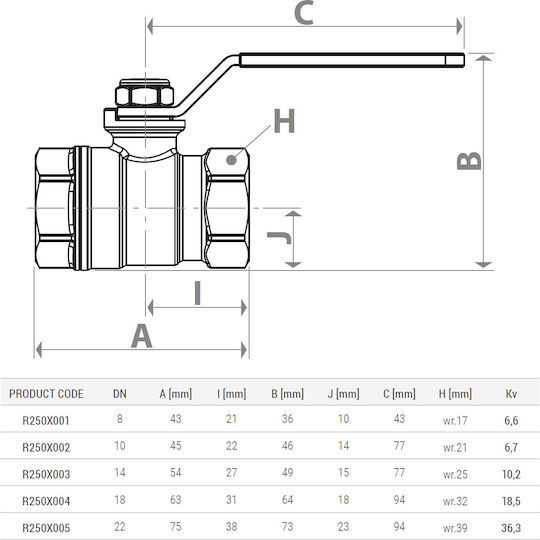

Dimensions:
  • Valve Type: Ball valve
  • Material: Brass
  • Valve Use: Water network
  • Valve Use: Heating system
  • Intended for: Indoor use
  • Weight: 0.35 Kg
  • Height: 94 mm
  • Maximum Operating Temperature: 185°C
  • Maximum Operating Pressure: 35 bar
  • Thread Type: Internal
  • Inlet Diameter: 1 inch
  • Outlet Diameter: 1 inch
  • Width: 73 mm
  • Length: 75 mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
Construction Material [Pharmaceutical]
Brass
with Connector
No
Thread Size
1"
