The Jopix HAM-10 mobile transceiver supports communication on the 10 m, 12 m and 11 m CB HF bands, with multiple operating modes: FM, AM, USB, LSB, CW and PA. Transmit power reaches 40 W in FM, SSB and CW and 12 W in AM, with selectable power levels of 4 W, 8 W and 40 W. The dual LCD display shows information such as frequency, band, transmission mode, channel number, RF signal level and SWR reading, with a choice of seven colours.

It includes ASQ, ECHO, Hi-cut, Beep, Dual Watch, Noise Blanker, ANL, Scan, Roger Beep, LCR, TalkBack, Scan List, TOT, CLARIFIER, SQ, microphone gain adjustment and RF gain, as well as SWR protection, power protection and keypad lock. The package includes a dynamic microphone with PTT, UP and DN buttons, a power cable with fuse holder, mounting brackets for the vehicle and microphone, screws, washers, a spare 15 A fuse and a user manual.

• Type: Mobile transceiver
• Colour: Black
• Quantity: 1
• Maximum power: 40 W
• Weight: 1.5 kg
• Frequency range: 10 m: 28.000–29.700 MHz, 12 m: 24.500–26.405 MHz, 11 m CB HF: 25.615–30.105 MHz
• Bands: A/B/C/D/E/F/G/H/I/J
• Channels: 40 per band
• Operating modes: FM, AM, USB, LSB, CW, PA
• Transmit power: 12 W in AM, 40 W in FM/SSB/CW
• Selectable power levels: 4 W, 8 W, 40 W
• Display: Dual LCD with a choice of 7 colours
• Frequency stabilisation technology: TCXO
• Frequency control: PLL synthesiser
• Frequency steps: 10 Hz, 100 Hz, 1 kHz, 5 kHz, 10 kHz, 100 kHz, 1 MHz
• Frequency tolerance: ±0.005%
• Frequency stability: 0.001%
• Operating temperature: -10 °C to +50 °C
• Power supply voltage: 13.8 V DC
• Power consumption: 5 A during AM transmission, 9 A in SSB at 30 W PEP, 0.6 A in receive mode with squelch
• Dimensions: 182 × 175 × 53 mm
• Frequency offset: +10 kHz

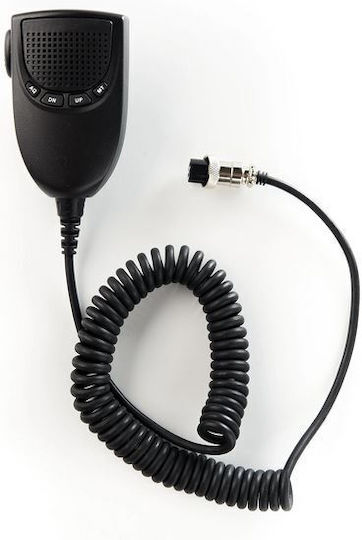

• Microphone: Dynamic, with PTT, UP and DN buttons and coiled cable
• Transmitter frequency response: 450–2,500 Hz in AM/FM
• Antenna impedance: 50 Ω, unbalanced
• Receiver sensitivity (12 dB SINAD): 0.25 µV in SSB, 1.0 µV in AM/FM
• Intermediate frequencies: 10.695 MHz and 455 kHz in AM/FM, 10.695 MHz in SSB
• Adjacent-channel selectivity: 60 dB in AM/FM, 70 dB in SSB
• Microphone gain: 45 dB, adjustable
• AGC: <10 dB for an input of 10–100 µV
• Adjustable squelch: Threshold <0.5 µV
• Automatic squelch control: 0.5 µV in AM/FM
• Noise blanker: RF type, for AM/FM and SSB
• Audio output: 3 W at 8 Ω
• Receiver frequency response: 300–2,800 Hz in AM/FM
• Built-in speaker: Round, 8 Ω
• External speaker: 8 Ω, disables the built-in speaker

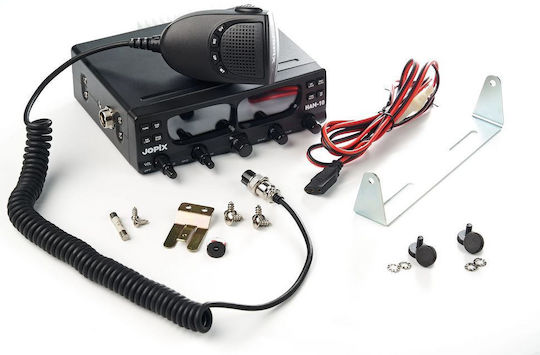

• Package contents: Transceiver, power cable with fuse holder, dynamic microphone, vehicle mounting bracket, microphone holder, screws and washers, spare 15 A fuse, user manual
