Description
Specifications

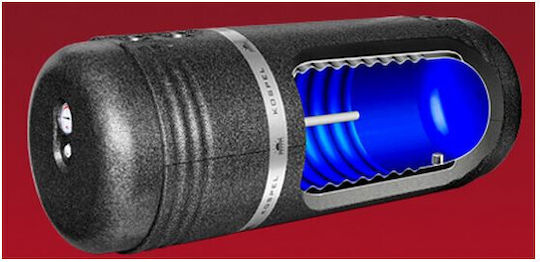

The Kospel WP-100 wall-mounted heat exchanger has a double-wall design and is suitable for horizontal installation. The steel tank is coated with enamel across its entire surface and insulated with rigid expanded polystyrene designed for heating applications. The temperature indicator lets you read and monitor the water temperature, while the diffuser limits the mixing of cold and hot water.
Compatible with GRBT-1.4kW or GRBT-2.0kW electric heating elements, which are not included.
- Type: Double-wall heat exchanger
- Capacity: 100 L
- Installation: Horizontal
- Tank material: Steel
- Coating: Enamel
- Insulation: Black, rigid expanded polystyrene
- Temperature indicator: For reading and monitoring the water temperature
- Diffuser: Limits the mixing of cold and hot water
- Compatible electric heating elements: GRBT-1.4kW, GRBT-2.0kW
- Rated tank pressure: 0.6 MPa
- Rated jacket pressure: 0.3 MPa
- Heat exchange surface area: 0.75 m²
- Daily energy loss: 1.5 kWh at a constant water temperature of 60 °C
- Heat exchanger output: 20 kW at 80/15/45 °C parameters (heating water temperature/supply/domestic water)
- Heating water flow through the heat exchanger: 3.0 m³/h

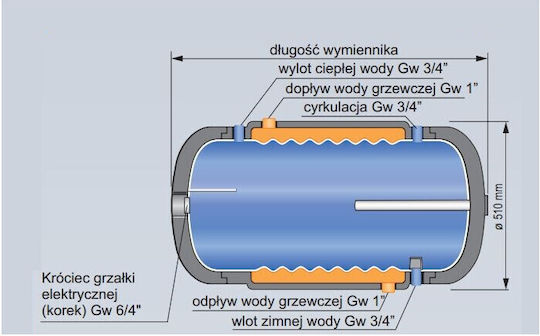

- Heat exchanger length: 1080 mm
- Product Number
- WP-100.TERMO-HIT.PL
Dimensions
- Type
- Heat Exchanger
- Construction Material [Pharmaceutical]
- -
- Smart / WiFi
- No
Technical Parameters
- Thread / Cross-section
- -
- Power
- -
- Maximum Pressure
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
