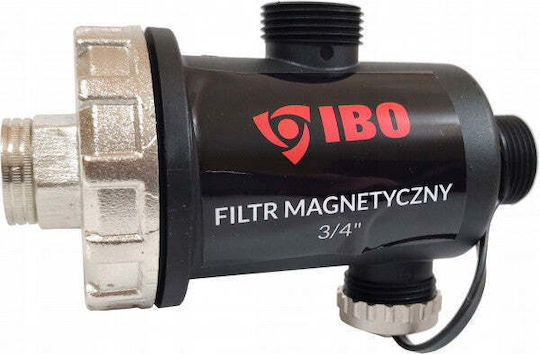

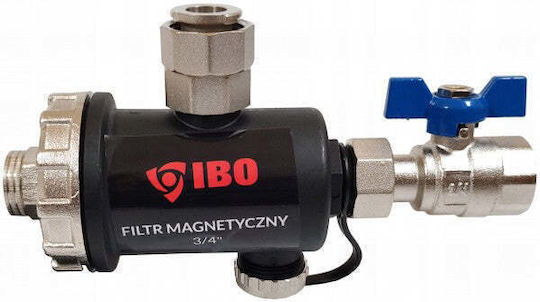

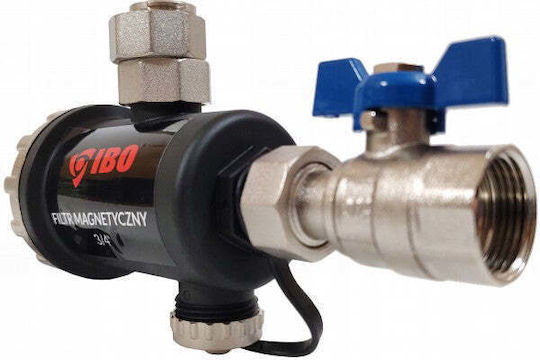

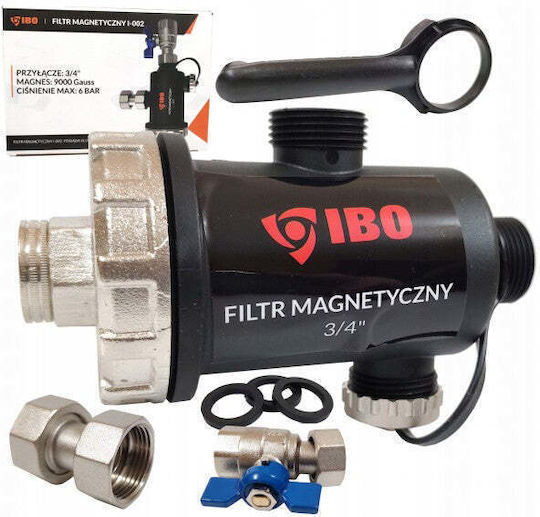

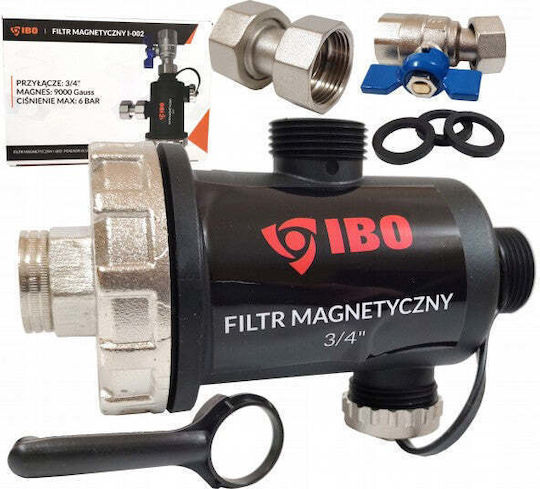

The I-002 filter with ¾” threaded connection is an extremely efficient full-flow magnetic filter, designed in a compact MINI form for easy installation, cleaning, and maintenance. It is ready to protect all central heating systems by effectively removing 100% of suspended ferrous oxides.
The separator is used to eliminate impurities from water in closed systems in central heating installations, particularly sand particles and rust. Contaminants in the circulation can accelerate the wear of the water pump, valves, and other heating system components. Dirt can block heat exchangers, radiator heads, or pipes, reducing the overall system efficiency.
Due to its special design, the separator can be installed horizontally or vertically. It allows excellent filtering and deposition of impurities in the filter tank. Pollutant removal can occur during the normal operation of the installation. The device can be mounted on vertical or horizontal pipes.
- Body: fiberglass-reinforced nylon
- Filter mesh: AISI 304 stainless steel
- Neodymium Magnet: 9000 G
- Medium: water
- Temperature range (minimum-maximum): 0°C ÷ 90°C
- Maximum inlet pressure: 4 bar
- Maximum flow: 1.5 m3/h

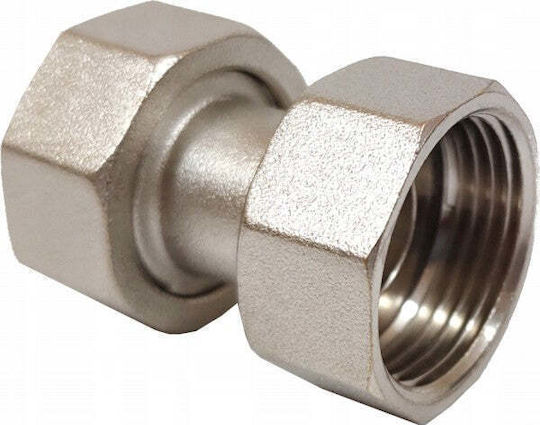

- Connection: ¾” GW x ¾” GW

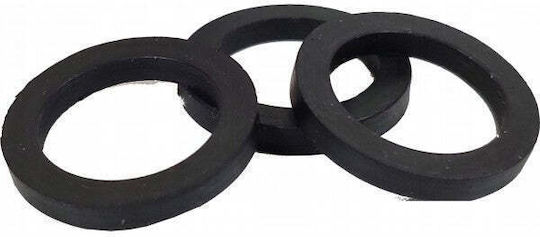

- Seal: EPDM
- Installation: on vertical and horizontal pipes
- Product Type
- Filter
- Pieces
- 1 pcs
