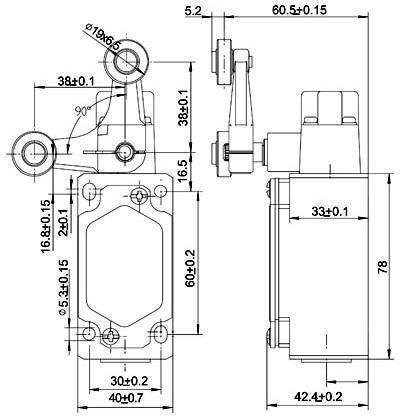

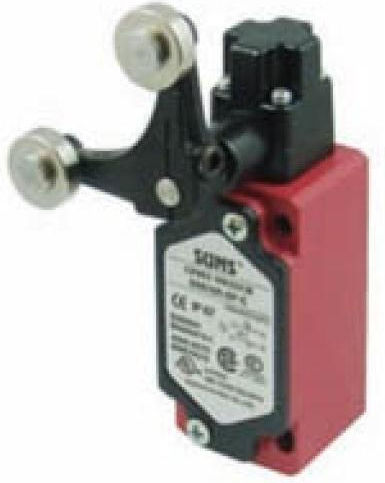

Metallic Terminal Switch with rotary double-arm and rollers.
- Rated current: 10A
- Rated voltage: 600VAC
- Insulation resistance: >100MΩ at 500VDC
-
Dielectric withstand:
- Between components carrying current: 1000VAC for 60"
- Between non-current-carrying components: 2000VAC for 60"
-
Life expectancy:
- Mechanical cycles: 10⁷
- Electrical cycles: 5x10⁵
- Contacts: 1NO+1NC
- Protection category: IP67
- Standards: EN60947-5-1 / EN50047
- Body: pressed zinc die-cast
- Galvanically isolated contacts
- Available cable entry options: M20, PG13.5, and 1/2”NP
- Product Number
- 03.015.0048
- Type
- Limit
- Colour
- -
- Features
- -
