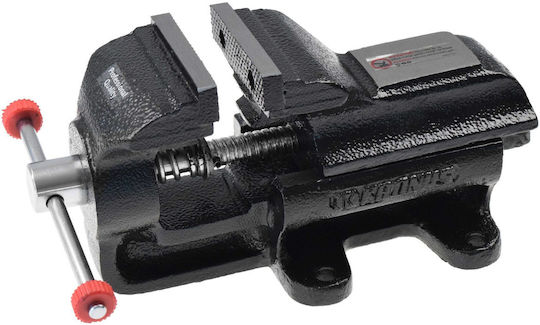

The vise is made from specialized impact-resistant cast iron (SG grade 500/7 gray cast iron). The process graphite is derived from gray cast iron with the addition of manganese, magnesium, and alloys. The SG grade 500/7 refers to a tensile strength of 500 N/mm² and a tensile elongation of 7%.

The cast iron graphite vise is twice as durable compared to a regular cast iron vise, as it has higher hardness, greater durability, less deformation (greater elongation before breaking), more stable clamping (better compressive strength), and twice the lifespan.

Its features include:

• Sliding mechanism on the back of the movable jaw.
• Fixed design of the front jaw that helps transmit additional clamping force.
• Parallel vises that ensure stable clamping on parts of different sizes.
• Handle made from forged C25 steel.
• Coating: painted with serrated jaws, heat-treated with an integrated wedge.
• Jaws made from C55 steel with 4 mounting points on the bed.
• KRONUS logo cast into the body.
• Axis made from forged C25 steel.

Technical specifications are:

• Net weight: 13.50 kg
• Total length: 315 mm
• Total width: 155 mm
• Jaw size: 120 mm
• Jaw opening: 125 mm
• Clamping depth: 105 mm
• Total height: 170 mm
• Wedge length: 92 mm
• Wedge width: 55 mm
• Jaw hardness: HRC 35+
• Clamping force: 28 kN

Manufacturer: Kronus
