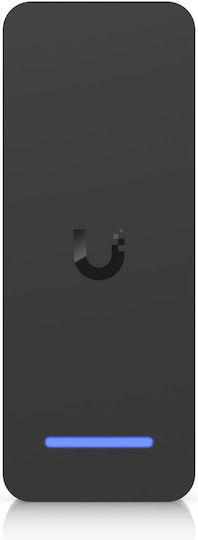

The Ubiquiti Retrofit Reader is an access control reader suitable for indoor and outdoor use. It integrates with UniFi Access via the UniFi Retrofit Hub and supports NFC, Apple Wallet, Google Wallet, and Bluetooth unlocking. Its IP55 protection rating allows it to operate at temperatures from -30 to +50 °C. Up to 2 readers can be daisy-chained on the same door.
- Type: OSDP reader for access control systems
- Communication: RS-485, Bluetooth 4.1, NFC 13.56 MHz
- Protocol: OSDP v2
- NFC technologies: ISO 14443A, 14443B, 15693, MIFARE Classic/Plus/Ultralight/DESFire
- Operating humidity: 5–90% non-condensing
- ESD protection: air ±15 kV, contact ±8 kV
- Material: polycarbonate, aluminum alloy, stainless steel mounting plate
- Dimensions: 117 × 45 × 13.3 mm
- Weight: 82 g
- Certifications: CE, FCC, IC, NDAA compliant
- Input Type
- -
- Attendance Time Clock
- No
- Waterproof
- No
- Bluetooth
- -
