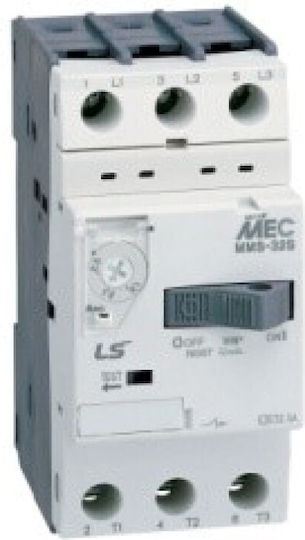

Solidly mounted thermal-magnetic motor switch with 3 poles and screw connection for the main circuit.
- Protection degree: ip20
- Adjustment of short-circuit instant switch: up to 52 A
- Adjustment of overload switch: from 2.5 A to 4 A
- Rated operating power AC-3, 400 V: 1.5000 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA
- Rated operating voltage: from 230 V to 690 V
- Rated continuous current Iu: 4 A
