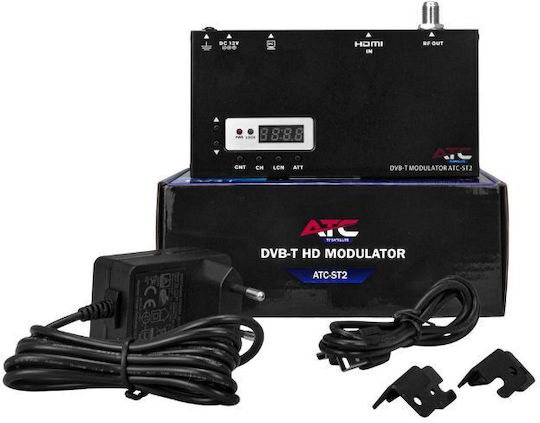

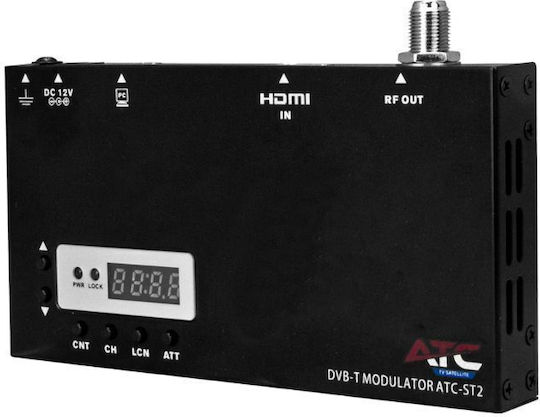

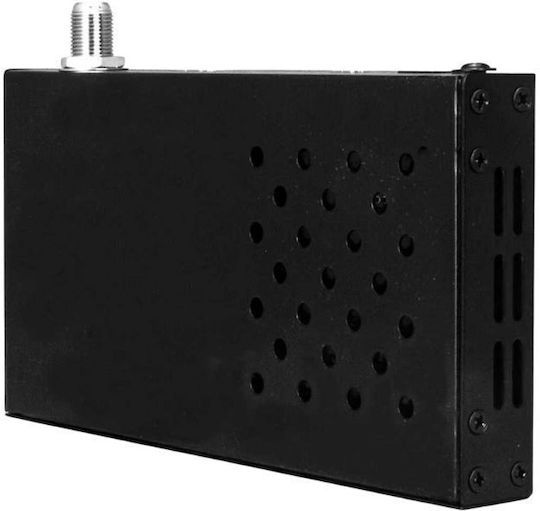

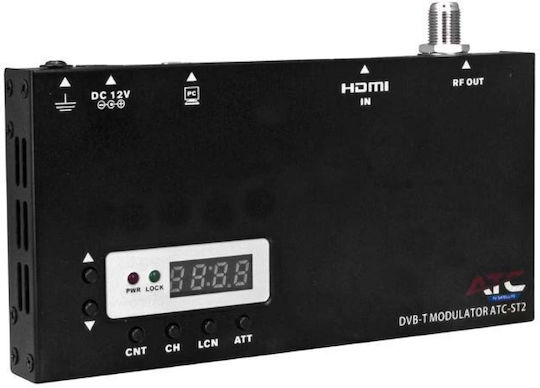

The ATC 03.001.0101 modulator converts signals into digital television broadcasts using the DVB-T standard and H.264 compression. It supports 64QAM modulation and has an adjustable RF output level.
- Standard: DVB-T
- Modulation: 64QAM
- Bandwidth: 7 / 8 MHz
- Number of carriers: 8K
- Guard interval: 1/32
- Code rate: 2/3
- MER: >28 dB
- Frequency range: 174–230 MHz, 470–862 MHz
- RF output level: Adjustable
- Output impedance: 75 Ω
- Power supply: DC 5 V / 1 A
- Operating temperature: 0 to +50 °C
- Connection: HD
- Compression: H.264
- Data rate: 5–15 Mb/s
- Type
- Modulator
