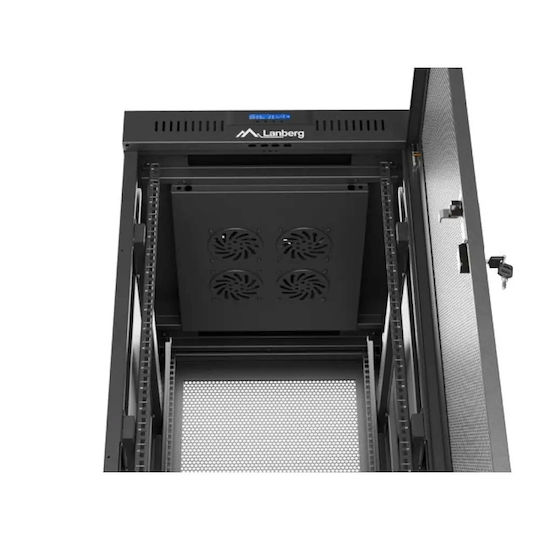

The Lanberg FF01-6832-23BL floor-standing rack cabinet is designed for installing network and server equipment. It has perforated front and rear doors, an LCD panel with thermostat, and a ventilation panel for 4 fans. It features four numbered vertical mounting rails, while the usable installation depth can be adjusted up to 680 mm.
Cable entry points are located at the top and bottom. The cabinet is supplied flat-packed and includes castors with brakes, adjustable feet, a grounding cable, M6 screws, a ventilation panel, a thermostat, and locks for the front, rear, and side doors.
- Type: Floor-standing
- Rack size: 19 inches
- Rack height: 19U
- Dimensions: 600 × 800 × 1676 mm
- Height without castors: 1573 mm
- Colour: Black
- RAL colour code: RAL9004
- Weight: 91 kg
- Maximum static load: 1200 kg
- Doors: Perforated front and rear
- Maximum front door opening angle: 210°
- Vertical mounting rails: 4 numbered
- Usable installation depth: Up to 680 mm
- Fan positions: 4
- LCD panel: Yes
- Thermostat: Yes
- Cable entry points: At the top and bottom
- Top and bottom panel thickness: 1.5 mm
- Mounting rail thickness: 2 mm
- Frame and other component thickness: 1.5 mm
- Protection rating: IP20
- Standards: ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-21982
- Grounding points: Front door, rear door, and frame
- Package contents: Castors with brakes, grounding cable, feet, ventilation panel for 4 fans, M6 screws, thermostat, locks for the front, rear, and side doors
- Placing
- Floor
- Rack Unit
- 19U
- Colour
- Black
- Weight
- 91 kg
