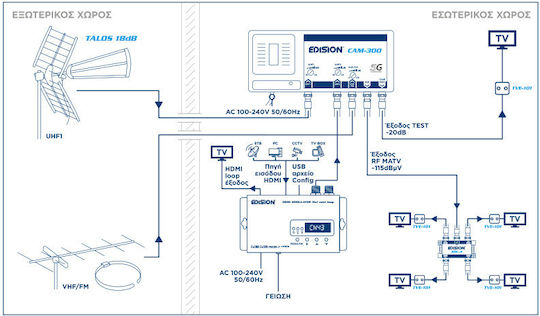

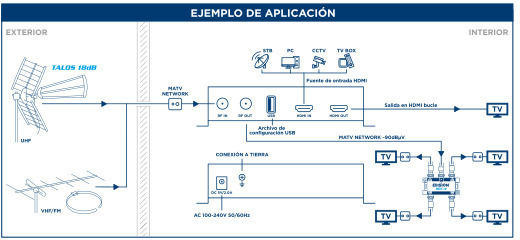

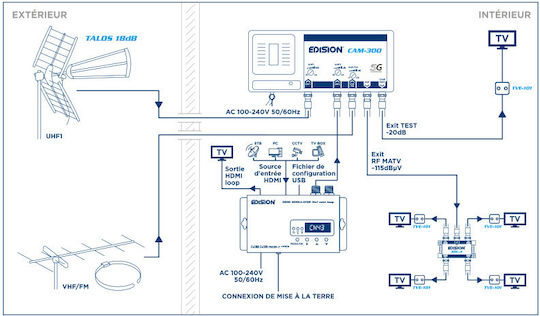

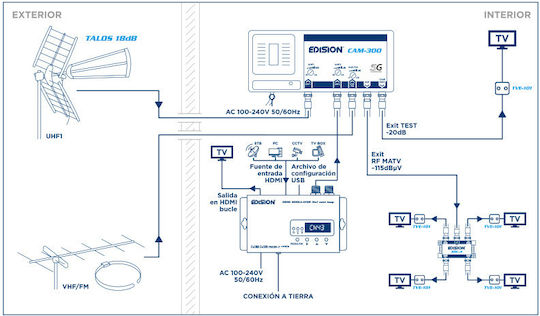

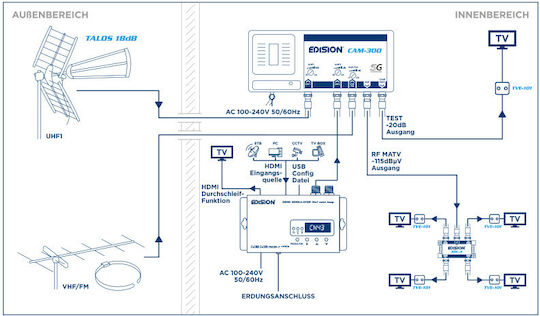

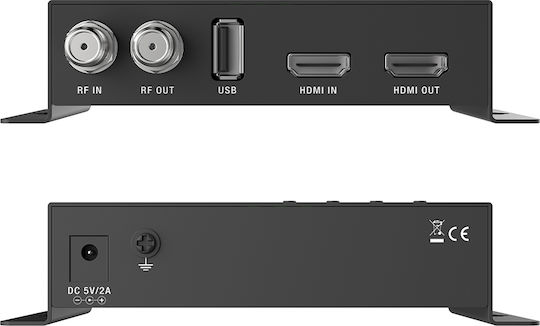

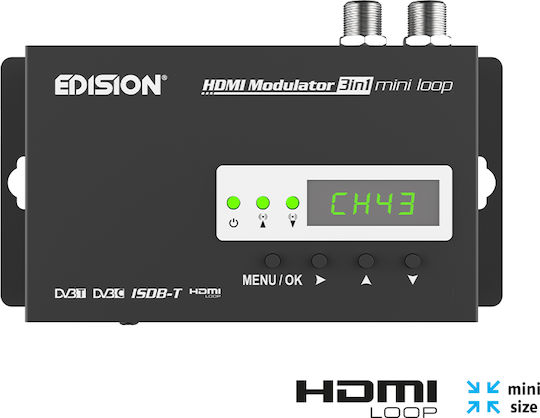

Digital single-channel HDMI modulator with the ability to display the HDMI source on the main television (HDMI-loop). It features an RF-IN mixing input and is compatible with any HDMI source (satellite receiver, TV Box, CCTV, DVD, Digital Signage, and others).

It modulates and outputs signal in Terrestrial Digital DVB-T, ISDB-T, or Cable DVB-C MPEG4 FULL HD. It offers excellent output signal quality with quick setup through the ID Pre-Config function, while the compact dimensions facilitate its installation even in limited spaces.

• Digital single-channel HDMI to DVB-T, DVB-C, or ISDB-T modulator with HDMI-loop output in mini size
• Signal INPUT: 1x HDMI v1.4a
• RF signal OUTPUT: 1 x Terrestrial Digital DVB-T, ISDB-T, or Cable DVB-C MPEG4
• DVB-T Frequency Range: VHF (CH.5-12) & UHF (CH.21-69)
• ISDB-T Frequency Range: VHF (CH.7-13) & UHF (CH.14-69)
• DVB-C Frequency Range: 47-862 MHz
• High video resolution FULL HIGH DEFINITION up to 1080p 60FPS
• RF output signal level: Factory set to 90 dBµV, selectable increase up to +6 dBµV or decrease down to -14 dBµV
• DDRIII 16bit 1GBit/s memory (Integrated) & NOR Flash 32Mbit
• Fast Pre-Config operation / 50 preset & selectable IDs
• Firmware upgrade via USB
• 4-digit LED Display

General characteristics:

• Power supply: 100 - 240 AC 50/60Hz
• Power consumption: 8.0W maximum
• Operating ambient temperature: 0°C ... +50°C
• Storage ambient temperature: -20°C ... +70°C
• Dimensions: 132x84x31 millimeters
• Weight: 0.41 kg
• Color: black

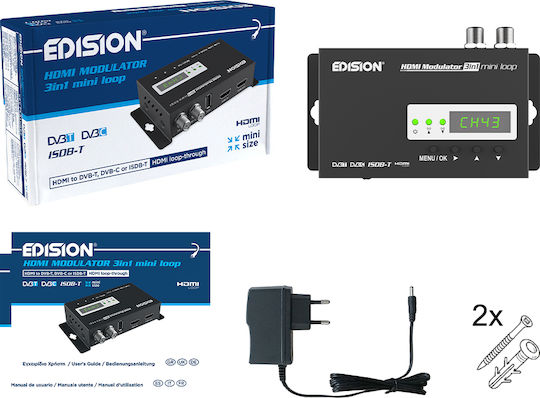

Package Contents:

• HDMI Modulator 3in1 mini loop

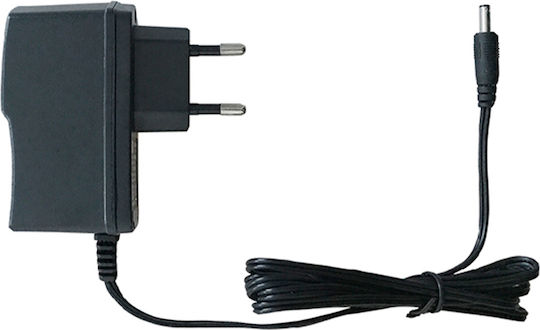

• Power supply 5V/2.0A EU
• Screws and wall plugs for mounting
• User manual GR/EN/DE/ES/IT/FR
