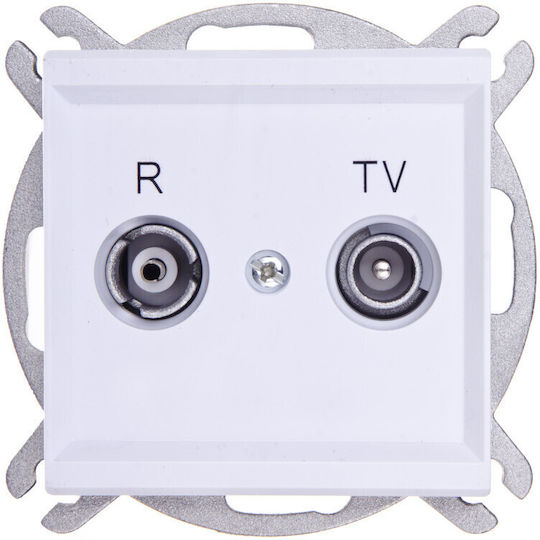

The Ospel GPA-RK/m/75 terminal RTV socket from the Sonata series is designed for television installations. It offers low signal attenuation of up to 1.5 dB, increased resistance to electromagnetic interference, and the option to power an antenna amplifier via a coaxial cable. Its plastic housing is resistant to mechanical stress and ultraviolet radiation.
- Type: Terminal RTV socket
- Colour: Matte white
- Impedance: 75 Ω
- RTV frequency range: 5–862 MHz
- Signal attenuation: Up to 1.5 dB
- Return loss: ≥ 10 dB
- Connection: IEC, female
- Number of sockets: 2
- Dimensions: 45 × 45 mm
- Installation: Surface-mounted, in 45 × 45 mm frames
- Operating temperature: From -10 °C to +60 °C
- Operating humidity: Up to 95% non-condensing
- Protection rating: IP-20
- Category
- Terminal
- Colour
- White
