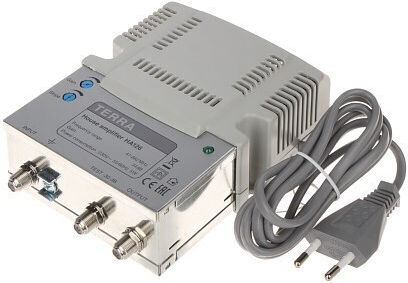

The Terra Electronics HA-126 satellite line amplifier boosts the television signal by 34 dB across the 47–862 MHz frequency range. It features adjustable gain and cable attenuation compensation.
- Frequency range: 47–862 MHz
- TV signal gain: 34 dB
- Frequency response flatness: ±0.5 dB
- Inputs/Outputs: 1/1
- Gain adjustment: 0–20 dB
- Cable attenuation compensation: 0–18 dB
- Maximum output level, IMD3=60 dB DIN45004B: 117 dBµV
- Maximum output level, IMD2=60 dB EN50083-3: 112 dBµV
- Return loss: >14 dB
- Return loss at f≥47 MHz: Decreases by 1.5 dB per octave
- Power consumption: 6 VA
- Operating voltage: 230 V
- Operating frequency: 50 Hz
- Operating temperature: -20–50 °C
- Weight: 0.930 kg
- Dimensions: 107 × 145 × 53 mm
- Type
- Line Amplifier
