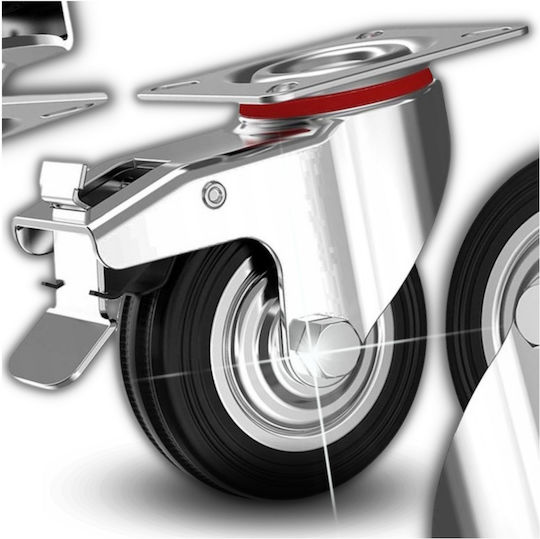

Swivel wheel with brake 125mm for carts

Swivel wheel with brake suitable for platform carts. Easy to install, connects with 4 screws. It can be quickly replaced, making it an excellent solution not only as the main wheel but also as a spare. Every platform cart owner should have it available for replacement, especially when transporting heavy loads over challenging terrains.

The wheel rotates 360 degrees and features a brake that locks the rotation.

• Quiet and smooth operation
• Secure mounting of the wheel with 4 screws, enhancing safety and stability
• 360-degree rotation of the wheel, allowing flexible movement in any direction
• Durable construction from steel ensuring long-term use and resistance to wear

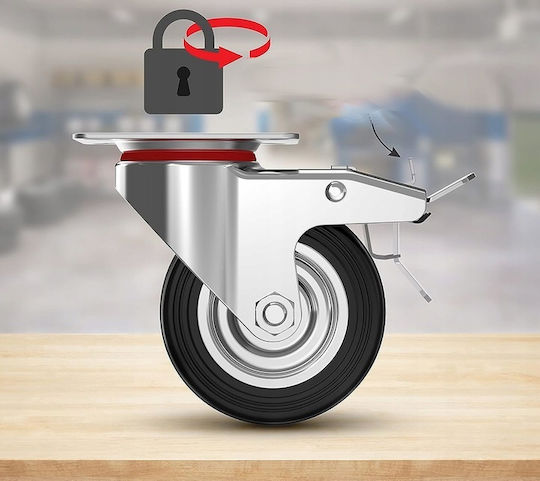

WHEEL WITH LOCKING BRAKE – The wheel is equipped with a brake that allows immobilization of the moving object. Engaging the brake slows down or locks the rotation of the rollers and the platform.

Quick and easy wheel replacement.

EASY INSTALLATION The swivel wheel with brake for platform carts is very easy to install. Anyone can do it, without special knowledge or complex tools. Simply screw it into the designated holes. This wheel can be replaced very quickly, allowing you to use the cart again in a very short time.

TECHNICAL DATA:

• Wheel bearing type: roller
• Rotary bearing type: ball
• Material: rubber, steel
• Maximum load (per wheel): 100 kg
• Weight: 1.17 kg

DIMENSIONS:

• Wheel diameter: 125 mm
• Wheel width: 32 mm
• Height: 160 mm
• Mounting width No. 1: 85 mm
• Mounting width No. 2: 65 mm
• Plate length: 100 mm
• Plate width: 80 mm
