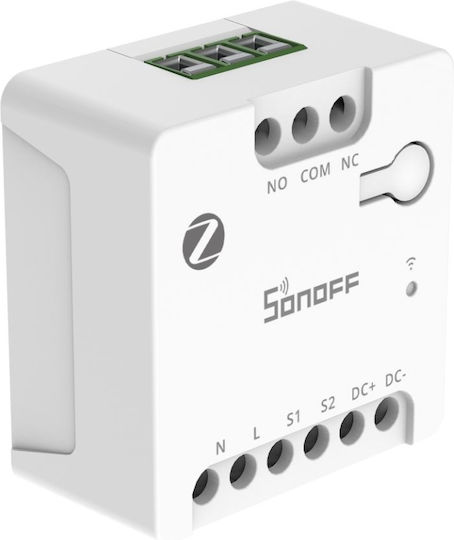

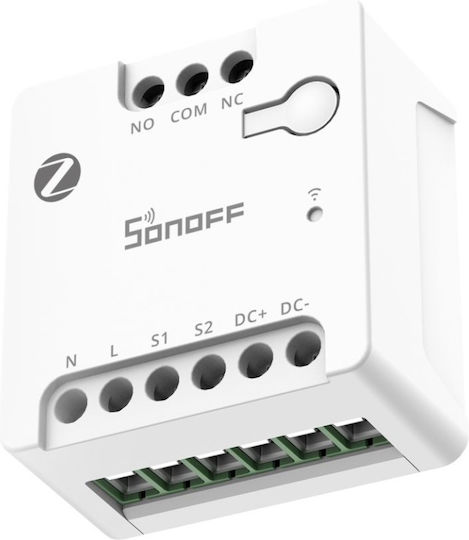

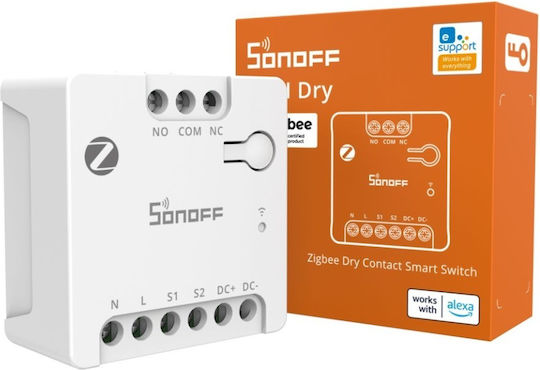

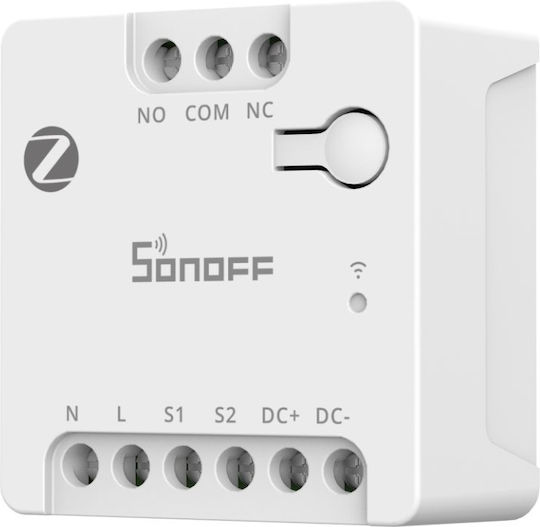

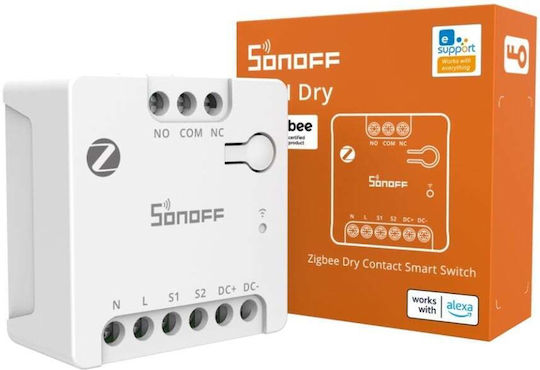

The Sonoff recessed wall switch operates via Zigbee 3.0 and uses a dry contact relay, electrically isolating the circuit it controls from the relay’s power supply. It is suitable for controlling inputs on systems such as garage doors, boilers and motors, as well as low-power DC devices up to 8 W.
It connects to a Zigbee hub for remote control, automation and voice control. It also functions as a Zigbee repeater, extending network coverage, and supports different control modes via an external switch.
- Type: Single
- Installation: Recessed
- Design: Complete
- Colour: White
- Connectivity: Zigbee 3.0
- Function: Dry contact relay (NO/NC/COM)
- Power supply: 100–240 V AC or 12–48 V DC
- Maximum load: 24 V DC / 2 A or 12/24 V DC / 8 W
- External switch input: S1, S2
- Zigbee network function: Signal repeater
- Compatibility: eWeLink, Home Assistant (ZHA, Zigbee2MQTT), Alexa, Google Home, SmartThings, IFTTT
Specifications
- Placement
- Recessed
- Switch Type
- Complete
- Switch Type
- Basic
- Colour
- White
Functions
- Aller Retour
- No
- Medium
- No
- Illuminated
- No
- Waterproof
- No
- Battery-powered
- No
Smart Attributes
- Connectivity
- ZigBee
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
