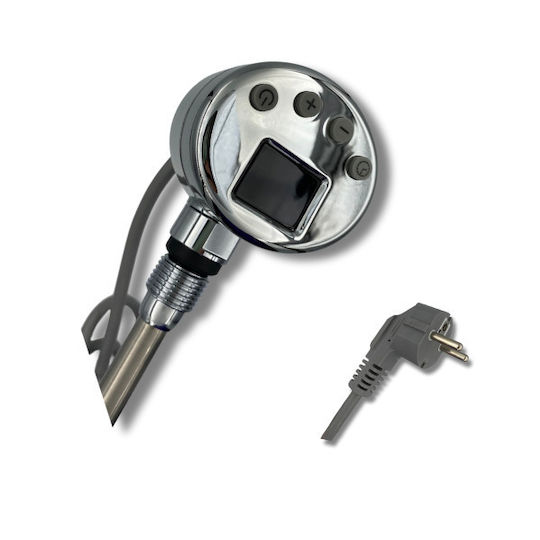

General characteristics:

• Power supply: 230V/50Hz
• Power: 200W-1000W
• Operating temperature: 0 to 55℃
• Temperature adjustment range: 30 – 70℃ (5℃ adjustment)
• Operating modes: Standby / water temperature adjustment 2H/4H/6H/8H timer
• Memory function
• Insulation class: Class I
• Waterproof rating: IPX4
• Dimensions: 70 x 60 x 45 mm

Installation instructions:

• The device should not be screwed or unscrewed from its plastic part.
• The device must not be installed horizontally or facing downwards.
• Do not fill the radiator body with water up to the upper edge.
• Water with antifreeze or the correct type of oil can be used as a heat transfer medium.
• The radiator body should only be heated by the resistance.

Electric resistance installation instructions:

• The device must not be connected to power during installation.
• Place the resistance on the lower inlet of the radiator body.
• Tighten the electric resistance to the radiator body by rotating its base with a size 22 wrench.
• Check the resistance connection to the body for tightness.

Uninstallation instructions:

• Close the valves and remove the liquid from the body before installing the electric resistance.
• The radiator body may need to be flushed to clean off mud and metallic deposits.
