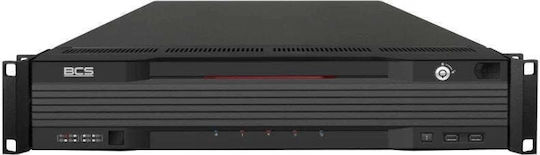

BCS BCS-U-NVR3208R-A-4K NVR Recorder 32 Channels with 4K Resolution
Surveillance Video Recorders

BCS BCS-U-NVR3208R-A-4K NVR Recorder 32 Channels with 4K Resolution

Key features:

  • Support for 32 IP cameras 12MP
  • Built-in 8TB hard drive
  • RAID 1/5/6/10 arrays
  • Fully NDAA compliant

Discover advanced DirectIP architecture and NDAA-level security for top-tier protection in critical installations.

See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    370

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    PoE

    These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    Alarm Output

    Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all
8609 02 €
8,61€ cashback in Coins 8,61€ cashback in Coins
Delivery Thu, 01 Oct - Wed, 07 Oct
Free   shipping cost
From Agmia
Πειραιάς, Αττικής
20+ pieces
See CCTV Systems on the page of Agmia
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

At a glance

  • Support for 32 12MP IP cameras: Simultaneous recording and management of 32 high-definition network channels.
  • Built-in 8TB hard drive: Pre-installed storage drive with support for up to 8 hard drives.
  • RAID 1/5/6/10 arrays: Full data protection and prevention of recording loss.
  • Full NDAA compliance: High security standards suitable for demanding environments.

Top processing power and dual HDMI

Manage up to 32 IP channels with a maximum recording resolution of 12 Mpx and an input bandwidth of 370 Mbps. The device features 4K HDMI and HDMI outputs for simultaneous high-definition display on multiple screens. In addition, it supports Fisheye Dewarping, allowing proper viewing and image correction from wide-angle cameras.

Absolute RAID protection and massive storage

Ensure the availability of your recordings thanks to the built-in 8TB hard drive, with the option to expand up to 8 drives of 10TB each. Support for RAID 1, 5, 6, and 10 arrays protects your files from potential hardware failure. At the same time, the H.265+ and H.264+ compression algorithms save valuable storage space without any loss in quality.

Advanced DirectIP Security and Networking

Enhance your network security with the built-in DirectIP, SSL, TLS, Firewall, and Chained Fingerprint technologies. The system features 4 Ethernet ports (1x Client, 3x Video in) and 2 SFP ports for optical fiber, providing standalone networking for the cameras. Compliance with the NDAA standard guarantees the highest security specifications.

Smart features and rich connectivity

Take advantage of artificial intelligence capabilities from connected cameras, such as perimeter protection, face detection, and object recognition. The recorder features 16 inputs and 4 alarm outputs, RS232/RS485 ports, as well as 4 eSATA ports and 3 USB ports for fast backup export.

Specifications

  • Type: 32-channel network video recorder (NVR)
  • Model: BCS-U-NVR3208R-A-4K(8TB)
  • Product series: BCS ULTRA
  • Security standard: NDAA compliance
  • Maximum recording resolution: 12 Mpx
  • Input bandwidth: 370 Mbps
  • Built-in hard drive: 1 × 8 TB
  • Hard drive bays: 8 × SATA (up to 10 TB per drive)
  • RAID support: RAID 1, 5, 6, 10
  • Video compression: H.265+, H.265, H.264+, H.264
  • Video outputs: 1 × HDMI 4K (3840×2160), 1 × HDMI
  • Fisheye Dewarping function: Yes
  • Simultaneous playback: 32 channels
  • Network security: DirectIP, SSL, TLS, FEN, iBank, Firewall, Chained Fingerprint, IPC separated network
  • Network interfaces: 1 × RJ-45 10/100/1000Mbps (Client), 3 × RJ-45 10/100/1000Mbps (Video in), 2 × SFP (Video in)
  • Other ports: 1 × USB 3.0, 2 × USB 2.0, 4 × eSATA, RS232, RS485
  • Audio inputs/outputs: 1 input / 1 output
  • Alarm inputs/outputs: 16 inputs / 4 outputs
  • Camera AI functions: Perimeter protection (intrusion, line crossing), object recognition (person/vehicle), face detection
  • Power supply: 100~240V AC
  • Power consumption: max 130W (without hard drives)
  • Chassis size: 2U (Rackmount)
  • Operating conditions: 0°C~+40°C, max 90% RH
  • Dimensions: 482.6 × 529.5 × 88 mm
  • Weight: 11.25 kg (without drives)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
32

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
12

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Incoming Bandwidth
370 Mbps

Incoming Bandwidth: 370

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, PoE, USB, Alarm Output, Alarm Input

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
8

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
10 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
Yes
Installed Disk Capacity
8 TB

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
