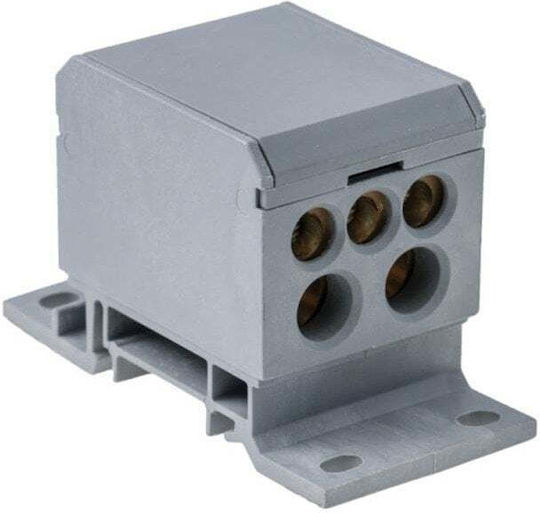

The Pawbol E.4091/SZ distribution block is designed for indoor electrical installations. It has a rated current of 160 A and operates at voltages up to 600 V.
- Rated current: 160 A
- Operating voltage: up to 600 V
- Protection rating: IP20
- Housing material: Flame-retardant PA
- Colour: Grey
- Dimensions: 80 × 40 × 50 mm
- Mounting: On a TH 35 rail or screwed onto a flat surface
- Side 1 connection: 2 × 2.5 mm², depth 21.5 mm
- Side 2 connection: 3 × 2.5 mm², depth 12.5 mm or 2 × 2.5 mm², depth 25.5 mm
- Type
- Power Distribution Block
